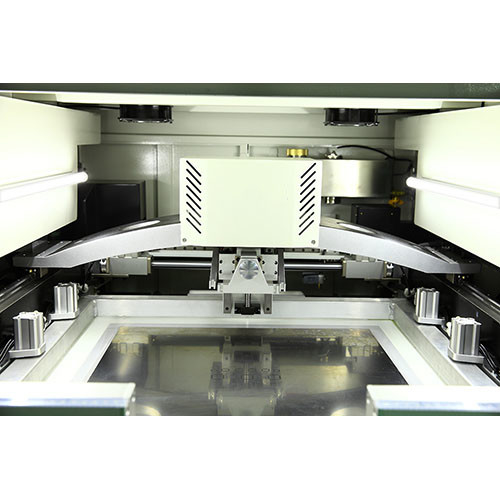

Fully Automatic Visual Solder Paste Printer- YSL-A5 detect for printing off set insufficient paste,missing and bridge and other defects
Functional features
Scraper system
Arch bridge type suspending direct-connected scraper Print head with the programmable and suspending self-adjusting stepper motor drive.Four wheel positioning slide type with bilateral double sliders ensures the moving accuracy and stability when scraper is running back and forth.Two sets of separate scraper heads are driven respectively by two high precision stepper motors ensuring the accuracy and stability of the pressure.The closed loop pressure control system can accurately detect and control the squeegee pressure during real-time production.
Image And Optical System
Uniform ring light. high brightness coaxial light and advanced Upper/lower vision system Full range of light compensation,Automatic and accurate recognized of all type MARK points. Applicable for tin plating,copper plating.gold plating.tin spraying.FPCand other types PCB with different colors, able to ensure high accuracy
Cleaning system
Stencil cleaning system is automatic and effective.Three options of Dry cleaning,Wet cleaning and Vacuum cleaning can be selected to use,both individually and multiply.And you can also choose to clean manually.The unit to clean is separated from CCD camera,which can minimize the load of motor and impulse,improve the positioning precision and speed and extend the service life.Sprinkier system ensures spraying evenly.from top to bottom.The software function can control thedosage of alcohol and stencil cleaning paper,Effectively save more consumables.Vacuum cleaning is supported with a dedicated fan,powerful and effective.
Right Special Platform Calibration System
Three axes linkage is designed with super-high dynamic characteristics.It can quickly adjust the PIN jacking height of PCB with different thickness
Operation Interface
Using Windows XP operation interface.and easy to learn for
user,with goodman-machine interactive function.Programing is designed with teaching and navigation function,guidance is avallable on every step. Chinese/English selectable Operating Journal/Break down Record/Break down Diagnasis
2D Paste Printing Quality Test And Analysis
Ensure the quality of product printing.This feature can quickly
detect for printing off set insufficient paste,missing and bridge and other defects.
| Model | YSL-A5 | |
| Item | ||
| Screen Frames | Min Size | 370X370mm |
| Max Size | 737X737mm | |
| Thickness | 25~40mm | |
| PCB Min Size | 50X50mm | |
| PCB Max Size | 400X340mm | |
| PCB Thickness | 0.4-6mm | |
| PCB Warpage | <1% | |
| TransportHeight | 900±40mm | |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right | |
| Transport Speed | Max1500mm/S Programmable | |
|
Board Location PCB Location |
Support System | Magnetic Pin/Up-down table adjusted/support block by hand |
| Clamping System | side clamping.vacuum nozzle | |
| Print head | Two independent motorised printheads | |
| Squeegee Speed | 6-200mm/sec | |
| Squeegee Pressure | 0-15Kg | |
| Squeegee Angle° | 60°/55°/45 | |
| Squeegee Type | Stainless steel(Standard),plastic | |
| Stencil Separation Speed | 0.1~20mm/sec Programmable | |
| Cleaning System | Dry,Wet,Vacuum(Programmable) | |
| Table Adjustmentranges | X:+10mm;Y:±10mm:0:±2° | |
| CCD FOV | 8x6 mm | |
| Solder Paste inspection | 2D inspection | |
| Machine | ||
| Repeat Position Accuracy | ±0.01mm | |
| Printing Accuracy | +0.025mm | |
| Cycle Time | <7s (Exclude Printing & Cleaning) | |
| Product Changeover | <5Min | |
| Air Required | 4.5~6Kg/cm2 | |
| Power Input | AC:220+10%50/60HZ1Ф3KW | |
| Control Method | PC Control | |
| Machine Dimensions | 1220(L)X1375(W)X1500(H)mm | |
| Machine Weight | Approx:1000Kg | |
