2D Inspection Automatic Stencil Positioning Solder Paste Printer For PCB Board

Product Details

Place of Origin: shenzhen

Brand Name: YSL

Certification: CE

Model Number: YSL-ASE

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price
High Light:

Automatic Stencil Positioning Solder Paste Printer

,

PCB Board Solder Paste Printer

,

2D Inspection PCB Solder Paste Printer

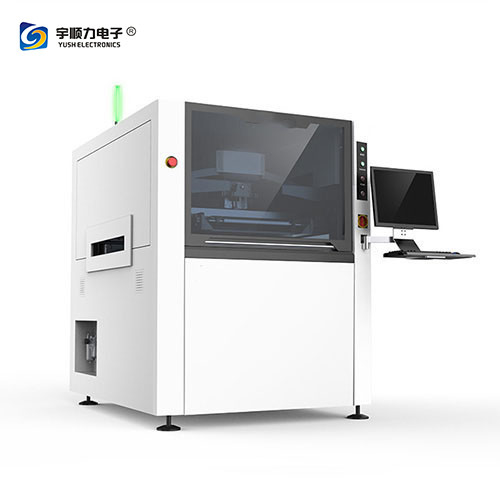

2D Inspection Automatic Stencil Positioning Solder Paste Printer For PCB Board

Fully Automatic Visual Solder Paste Printer-YSL-ASE


Functional features
Scraper system
it is applicable for stencils of various sizes. Automatic stencil positioning system saves the line changeover time and enhances the overall efficiency.
2D Inspection Automatic Stencil Positioning Solder Paste Printer For PCB Board 0
Fully Automatic Visual Solder Paste Printer-YSL-ASE Image And Optical System
Uniform ring light, high brightness coadal light and advanced upperiower vision system Full range of light compensation,Automatic and accurate recognized of altype MARK points. Applicable for tin plating,copper plating,gold plating,tin spraying, Fpc and other types PCB with different colors,able to ensure high accuracy

Cleaning system
Stencil cleaning system is automatic and effective. Three options of Dry cleaning Wet cleaning and Vacuum cleaning can be selected to use,both individually and multiply.And you can also choose to clean manually The unit to dean is separated from CCD camera,which can minimize the load of motor and impulse, improve the positioning precision and speed and extend the service life.Sprinkler system ensure spraying evenly,from top to bottom.The software function can control the dosage of alcohol and stencil cleaning paper,Effectively save more consumables.Vacuum cleaning is supported with a dedicated fan,powerful and effective.
2D Inspection Automatic Stencil Positioning Solder Paste Printer For PCB Board 1
Right Special PlatformCalibration System
Three axes linkage is designed with super-high dynamic characteristics.it can quickly adjust the PIN jacking height of PCB with different thickness

Operation Interface
Using Windows XP operating interface,and easy to learn for user,with goodman-machine interactive function.Programing is designed with
teaching and navigation function guidance is available on every step.Chinese/English selectable Operating Journal/Breakdown Record/Breakdown Diagnosis
PCB Transport Clamping System
Unique belt transmission system avoids being stuck or fall-off of PCB Programmable motor controls transport speed and puts PCB in the precise position.
Free to choose left or right as the PCB input/output direction.
Flexible side clamp and PCB support vacuum block hold PCE tightly and ensure the full even contact between PCB and stencil.
2D Inspection Automatic Stencil Positioning Solder Paste Printer For PCB Board 2
Fully Automatic Visual Solder Paste Printer-YSL-ASE Specification

 ModelYSL-ASE
Item
Screen FramesMin Size370X370mm
Max Size737X737mm
Thickness25~40mm
PCB Min Size50X50mm
PCB Max Size400X340mm
PCB Thickness0.4-6mm
PCB Warpage<1%
TransportHeight900±40mm
Transport DirectionLeft-Right;Right-Left;Left-Left;Right-Right
Transport SpeedMax1500mm/S Programmable
Board Location PCB LocationSupport SystemMagnetic Pin/Up-down table adjusted/support block by hand
Clamping Systemside clamping.vacuum nozzle
Print headTwo independent motorised printheads
Squeegee Speed6-200mm/sec
Squeegee Pressure0-15Kg
Squeegee Angle°60°/55°/45
Squeegee TypeStainless steel(Standard),plastic
Stencil Separation Speed0.1~20mm/sec Programmable
Cleaning SystemDry,Wet,Vacuum(Programmable)
Table AdjustmentrangesX:+10mm;Y:±10mm:0:±2°
CCD FOV8x6 mm
Solder Paste inspection2D inspection Standard
Machine
Repeat Position Accuracy±0.01mm
Printing Accuracy+0.025mm
Cycle Time<7s (Exclude Printing & Cleaning)
Product Changeover<5Min
Air Required4.5~6Kg/cm2
Power InputAC:220+10%50/60HZ1Ф3KW
Control MethodPC Control
Machine Dimensions1220(L)X1375(W)X1500(H)mm
Machine WeightApprox:1000Kg
