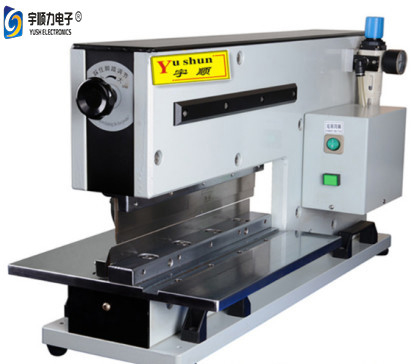

Guillotine Type Manual SMD PCB Depaneling Machine

Guillotine Type Manual SMD PCB Depaneling Machine
Guillotine Type Manual SMD PCB Depaneling Machine Guillotine Type Manual SMD PCB Depaneling Machine Guillotine Type Manual SMD PCB Depaneling Machine

Large Image :  Guillotine Type Manual SMD PCB Depaneling Machine

Product Details:
Place of Origin: JiangSu
Brand Name: YuSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSVC-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 6800-9600 USD
Packaging Details: Plywooden case
Delivery Time: 5~7 days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 30sets/ month

Guillotine Type Manual SMD PCB Depaneling Machine

Description
Dimension: 720mm(L)*300mm(W)*440(H) PCB Board Thickness: 0.50~3.5mm
Working Barometric Pressure:: 0.4mpa~0.7mpa Weight: 175KG
Application: All V-cut
High Light:

SMD PCB Depaneling Machine

,

Manual PCB Depaneling Machine

,

Guillotine Type PCB Depanelizer

LED Panel PCB Depanel Machine , PCBA Depaneling Machine,manual pcb cutter,blade grinding machine





PCBA depaneling machine Feature:



1. Double straight knife cutting, quite suitable for separating precise SMD sheet and aluminum board.



2. Guillotine type, and suitable for various thickness PCB, plate cutting stroke below 2mm, no operation safety concerns.



3. The internal stress which is produced during cutting drop to below180uE, In order to avoid split, and prevent precision parts damaged.



4. Can cut the board which the width between the V groove edge and parts is 0.3mm, height is 60mm.



5. The cutting tool can be repeated grinding freely after wearing.



PCBA depaneling machine Specification:





Maximum length of the board: 300mm / 400mm
Package Size: 720mm(L)*300mm(W)*440(H)
Thickness: 0.50~3.5mm
Power supply: 220VAC / 110V
Working air pressure: 0.4——0.6Mpa
Weight: 189 kg
Scope of application: All V-CUT SMD PCB board



PCBA depaneling machine Characteristics:

1. The rate of segmentation is 1 separation per second, and is controled by the pedal pneumatic switch .
2. Cutting knife group as a passive start, can be safely grasp cutting line and its position; cutting stress is small, and not easy to form the cracking phenomena.
3. Non roller (roller cutter, samtech cutting) cutting, no dust, no motor drive, no carbon pollution.
4. Non friction type cutting , no residual metal.
5. Blade using warranty 200000/ no power supply, so there is no loss of electrical products, and no replacement.






Guillotine Type Manual SMD PCB Depaneling Machine 0



Guillotine Type Manual SMD PCB Depaneling Machine 1



Guillotine Type Manual SMD PCB Depaneling Machine 2
