3mm Thickness Windows 7 OS V Cut PCB Router Machine

Product Details

Place of Origin: Jiangsu,China

Brand Name: YUSH

Certification: CE

Model Number: YSVC-650

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD20000~25800

Packaging Details: Wooden case

Delivery Time: 7-10 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50sets/month

Get Best Price
High Light:

Windows 7 OS PCB Router Machine

,

3mm Thickness PCB Router Machine

,

Windows 7 PCB V Cut Machine

Max Cutting Width:
300mm
Size:
L1300*W400*H1000mm
Power:
220V 50Hz
Power Consumption:
<2KW
X、Y、Z Axis Drive Mode:
AC Servo Motor Control
Vision System:
Vision Automatic Positioning System
Milling Cutter Diameter:
0.8~3.0mm
Apply To:
Mobile Phone GPS PDA MOOULE
Cutting Accuracy:
±0.1mm
Max Cutting Width:
300mm
Size:
L1300*W400*H1000mm
Power:
220V 50Hz
Power Consumption:
<2KW
X、Y、Z Axis Drive Mode:
AC Servo Motor Control
Vision System:
Vision Automatic Positioning System
Milling Cutter Diameter:
0.8~3.0mm
Apply To:
Mobile Phone GPS PDA MOOULE
Cutting Accuracy:
±0.1mm
3mm Thickness Windows 7 OS V Cut PCB Router Machine

Thickness 3mm Windows7PCB Router Machine With Multiple Group Blades/PCB Gong board machine



Feature:


1. The shaft of the knives( top and bottom) is design to be an an integral whole, it is convenient to install, pick and place.

2. This machine adopts computer screen control with a counting device which can be preset production. Gap of the cutting tool displayed by the display screen directly.

3. All the v-cut pcb board can be cut by this machine.

4. Pcb board is cut by multiple cutters which can cut several board once.

5. The machine top cutter wheel can be slightly adjust:0-5mm.

6. The distance between the knives can be adjusted, and it is suitable to cut single pcb board within width 15-20mm.

7. Blade is made of SKH51 high speed steel with long service life and wear resistance.


Specification

Power : 220V AC 50HZ



Power consumption:1500w

Size: L1300*W400*H1000mm

Working mode:offline

Process of cutting is unlimited

PBC thickness: 0.8-3.0mm

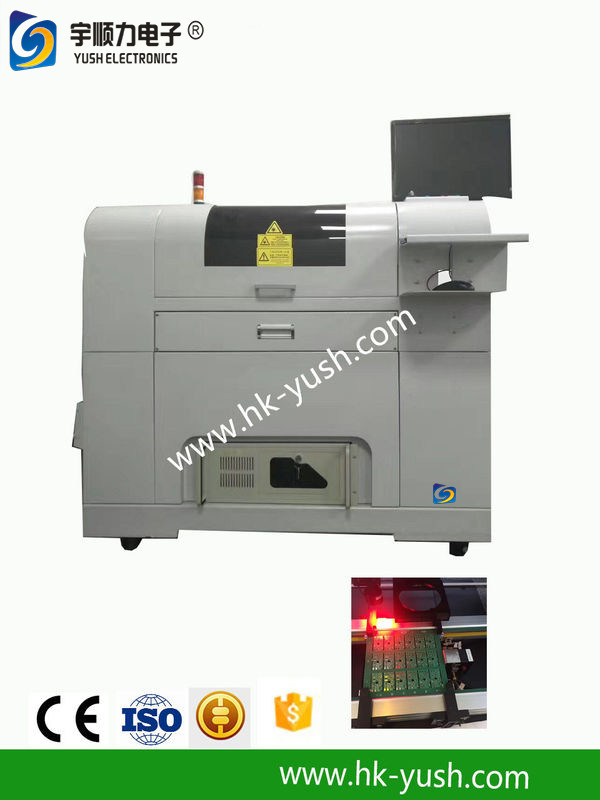

3mm Thickness Windows 7 OS V Cut PCB Router Machine 0



If you are interested in our product, please contact us!
