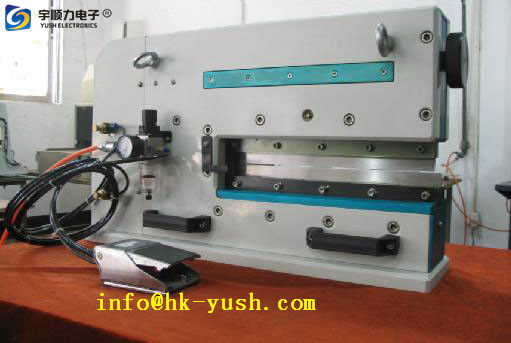

AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution

AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution
AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution

Large Image :  AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution

Product Details:
Place of Origin: JiangSu,China
Brand Name: YUSHUNLI
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSVC-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD3850
Packaging Details: Plywooden case
Delivery Time: 3 days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 300 sets/ month

AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution

Description
Package Size: 710mm(L)*310mm(W)*440(H) Thickness: 0.5~3.0mm
Working Air Pressure: 0.5~0.7Mpa Maximum Length Of The Board: 330mm / 400mm(can Custom Made )
Weight: 150 Kg Machine Warranty Period: One Year
Scope Of Application: All V-CUT SMD PCB Board Are Suitable Minimum Component Distance From V-groove: 1mm
High Light:

FR4 PCB Depanelizer

,

AC110V PCB Depanelizer

,

FR4 PCB V Cutter

Max size 400mm 220V AC 110V/ Working air pressure 0.5~0.7Mpa 189 Kg FR4 PCB Depanelizer / V Cut Cutter






Specification :



Model: YSVC-2L
The Longest Minimize 330mm
Size: 620mm x 230mm x 400mm
Minimize thickness: 0.3-3.5mm
Machine Weight: 165kg







Maximum length of the board: 300mm / 400mm
Package Size: 720mm(L)*300mm(W)*440(H)
Thickness: 0.5~3.0mm
Power supply: 220VAC / 110V
Working air pressure: 0.4~0.6Mpa
Weight: 150 kg
Scope of application: All V-CUT SMD PCB board




Characteristics

1. The rate of segmentation is 1 separation per second, and is controled by the pedal pneumatic switch .
2. Cutting knife group as a passive start, can be safely grasp cutting line and its position; cutting stress is small, and not easy to form the cracking phenomena.
3. No roller (roller cutter, samtech cutting) cutting, no dust, no motor drive, no carbon pollution.
4. No friction type cutting , no residual metal.
5. Blade using warranty 200000/ no power supply, so there is no loss of electrical products, and no replacement.
6. Cutting tool designs by the own company , does not need to import and with high effective .

AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution 0

Competitive Advantage:



1. YSVC-2 PCB depanelizer original manufacturers, price concessions

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme



AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution 1





AC220V AC110V FR4 PCB Depanelizer With No Carbon Pollution 2



If you interest in our products,please contact us!
