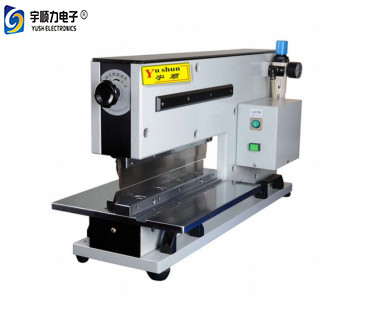

0.6~5.0mm 0.7Mpa Pneumatic PCB Depaneling Machine
Feature:
●Separates boards up to 3.5mm thick;
●Shears boards safely with parts as close as 0.5mm to the score line,including
ceramic capacitors;
●Operator foolproof! Panels cannot be inserted into the knives except on the
score line;
●Pneumatically driven;
●Handles high components up to70mm;
●Bow waves that can occur with round knives are avoided;
●Easy adjusting of distance between knives.
● Adjust blades to PCB score line using rotary knob.
● Boards are separated without bending or breaking.
● Safe for use with flexible and thin (to 0.5mm) PCBs.
● Smooth, quiet pneumatic-powered unit with foot -pedal activation.
● Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion.
● Can be used with aluminum and other substrates, including substrates with metal inner layers.
Specifications:
Machine drawing:
Machine video reference URL:
https://www.youtube.com/watch?v=07Gl10z1xIg
https://www.youtube.com/watch?v=AJMoFzCl-8c
https://www.youtube.com/watch?v=JWDAggG3wUI YSVC-200
