Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YSL-2000
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Business negotiation
Packaging Details: plywooden case
Delivery Time: 5-7work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets/month
Input Voltage: |
AC220V 50/60HZ |
Air Supply: |
>0.5Mpa |
Equipment Power: |
1.5KVA |
Dimension: |
1300*1450*1550mm |
Weight: |
800kg |
PCB Thickness: |
0.5－5ｍｍ |
Max PCB Size: |
350＊450ｍｍ |
Working Height: |
900±20mm |
Input Voltage: |
AC220V 50/60HZ |
Air Supply: |
>0.5Mpa |
Equipment Power: |
1.5KVA |
Dimension: |
1300*1450*1550mm |
Weight: |
800kg |
PCB Thickness: |
0.5－5ｍｍ |
Max PCB Size: |
350＊450ｍｍ |
Working Height: |
900±20mm |

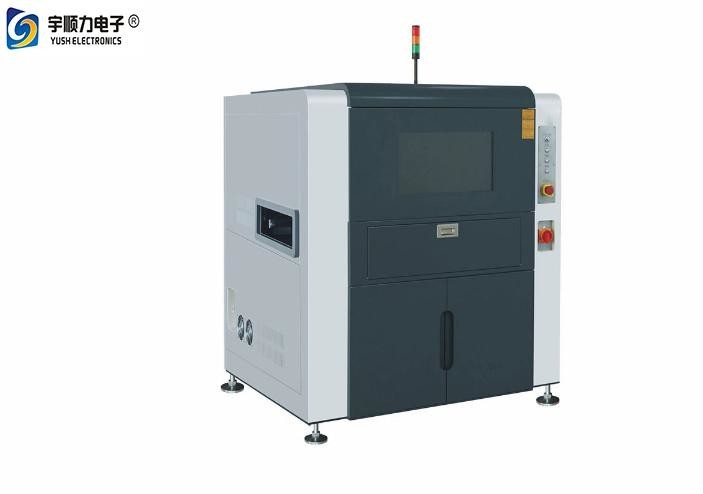

AC220V 50/60HZ AUTO smoke purification system Online laser marking machine
The basic specifications:
| Repeat positioning accuracy | ±25um |
| Working height | 900±20mm |
| Bar code minimum engraving | 2D:2*2mm(3mil) |
| Positioning system | CCD+MARK positioning |
| Bar code detection system | CCD online detection |
| PCB thickness | 0.5－5ｍｍ |
| Max PCB size | 350＊450ｍｍ |
| PCB pass height | UP:25mm DOWN:25mm |
| The thin plate anti-tilt system | Support upperand lower splint |
| Direction | Ｌ→Ｒ/Ｒ→Ｌ |
| Track width adjustment | AUTO |
| Smoke treatment mode | AUTO smoke purification system |
Engraving adject/type:
· English uppercase,lowercase,figure,katakana,Chinese character
·Symbol,user save text(up to 50 types),VEC※4,DXF,BMP,HPGL,JPEJ,AI,EPS
·CODE39,CODE128,ITF,NM-7,JAN(EAN),UPC
·QR code,Mini QR code,IQR code,Data matrix,GS1 Data matrix QR
Laser specifications:
| Laser type | CO₂ American cutting-edge original laser SYNRAD |
| Laser wavelength | 10.6um |
| Laser power | 5-30W(optional) |
| Laser cooling mothod | forced air cooling |
| Laser level | Class 4 |
| Laser electricity | 0.11mm |
| Laser variable optional focal | 2D laser,6mm variable optional focal |
| Working mode | laser moving |
Software:
Software interface:Chinese and English optimization interface
Fool-proof function:AUTO identification of PCB reverse,reverse, wrong materianls
Bar code data source:SHOPFLOW,MES,IMS,PMS,database,USB flash disk,this machine set the bar code rule,figure,time serial number
System connection function:Can connect SHOPFLOW,MES,IMS,PMS and management systems
Database:Each model can be archived,directly tuned when generated again
Engraving angle:0~360°
