Product Details
Place of Origin: China
Brand Name: YuSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YS-EPS3
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD1000-29000
Packaging Details: Plywooden case
Delivery Time: 5-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets/ month
Machine Size: |
1900x1735x1665 (mm) |
PCB Size: |
L340*W460 (mm) |
Conveyor Height: |
900±20(mm) |
Machine Size: |
1900x1735x1665 (mm) |
PCB Size: |
L340*W460 (mm) |
Conveyor Height: |
900±20(mm) |
Description

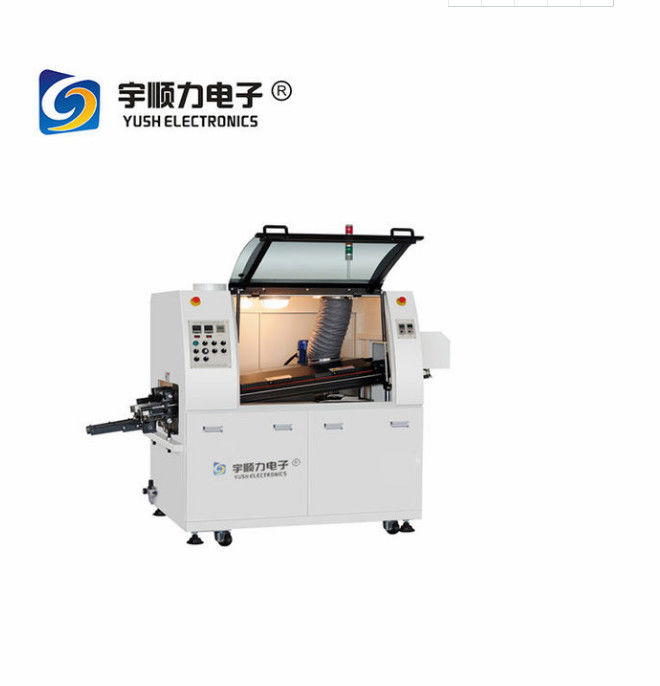

1900x1735x1665mm 2L 1.5-2m³/h/potx1 Selective Soldering Machine FLUX SPRAY MODULE lead free reflow oven
Technical Parameters:
| Machine Size | 1900x1735x1665 (mm) | |
| Transport width adjustment | 50-460 (mm) | |
| PCB size | L340*W460 (mm) | |
| Conveyor height | 900±20(mm) | |
| Solder pot | electromagnetic pump tin solder pot | |
| The amount of tin dross | single pot/dual pots | Stove 2 |
| Nitrogen consumption | 0.5KG/pot/week x1 | 0.5KG/pot/week x2 |
| solder pot numbers | 1.5-2m³/h/potx1 | 1.5-2m³/h/potx2 |
FLUX SPRAY MODULE
Introduction:
The spray head which is imported from Germany offers an absolutely precise and
well defined flux deposition on even the smallest areas. The flux is targeted to be
applied only to the solder joint,whereby the wettable area can be as small as 3
mm.with the effect that ionic contamination is minimized and flux consumption is
duced.
Features:
Saving 90%flux compared to traditional mode.
The wettable area can be as small as 3mm, minimize the effect of ionic contamination, meanwhile boards cleaning free.
Two axis servo motor control, high positioning accuracy.
Minimum ionic contamination.
| Specifications: | |
| Flux module x axis distance (max.) | 510mm |
| Flux module y axis distance (max.) | 450mm |
| Max. nozzle speed | 7m/min |
| Flux content | 2 L |
| Flux type | RO, RE and OR and with the effective standard of L0, L1, M0, according to IEC 61190-1-1 |
| Flux effective level | L0, L1, M0 |
| Nozzle | 130 μm, alternative diameter |
| Spray pressure | 0.5~1.0 bar |
| Spray width | 2~8 mm (with spray nozzle 130 μm) |
| Spray speed | 20 mm/s |
| Positioning speed | 400 mm/s |
| Positioning accuracy | ±0.2 mm |
| Flux system | 2-axis With Servo Drive |
Tag: pcb reflow oven,reflow oven machine, lead free reflow oven
