Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE
Model Number: YSV-3A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD1000-29000
Packaging Details: plywooden case
Delivery Time: 6-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets/month
Machine Size L/W/H: |
980×550×1250mm |
Blades Size: |
Round Knife ϕ125mm×3mm Straight Knife400mm×43.5mm×6mm |
Blades Material: |
Imported High Speed Steel |
Blades Brand: |
Yushunli |
Cutting Boards Thickness: |
One-third Thickness |
Cutting Board Length: |
1mm-5mm |
Cutting Speed: |
300mm/s |
Machine Size L/W/H: |
980×550×1250mm |
Blades Size: |
Round Knife ϕ125mm×3mm Straight Knife400mm×43.5mm×6mm |
Blades Material: |
Imported High Speed Steel |
Blades Brand: |
Yushunli |
Cutting Boards Thickness: |
One-third Thickness |
Cutting Board Length: |
1mm-5mm |
Cutting Speed: |
300mm/s |

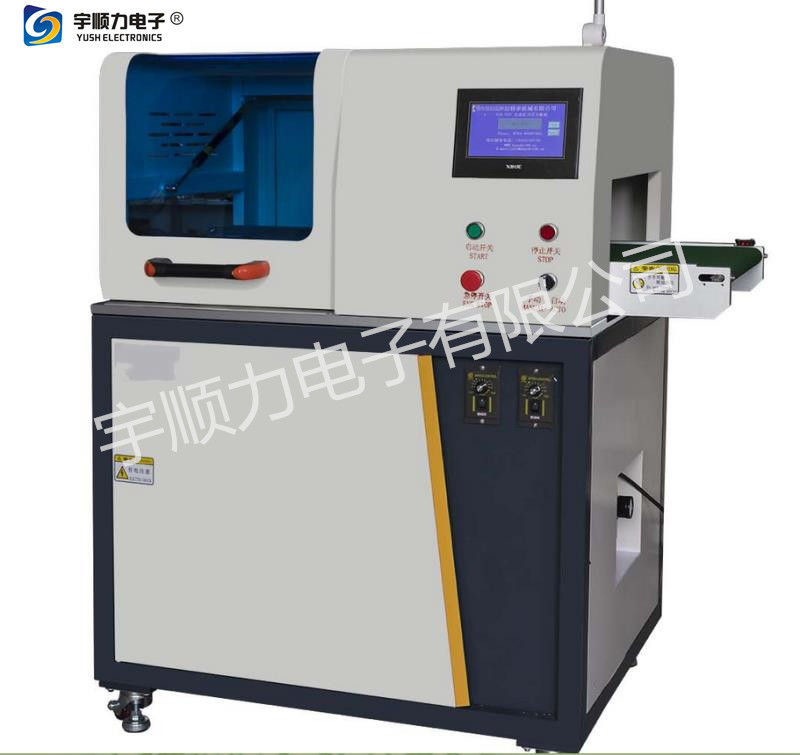

smt equipment/glass fibre pcb led cutting machine/aluminium board separator depaneling assembly machine
Features:
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
9.WIth high efficient cutting speed and high-quality circle blades.
Product Introduction:
The machine using PLC and touch screen control system, with the function of memory (it can store 100 sets of data), the function of convenient operation (as long as the product data stored) directly download is not required to be arranged setting again, fast changing plate segmentation, to achieve a variety of plate type split operation machine. The machine is provided with operator interface and engineering technicians use interface, product data operation technicians use interface can download the relative production, but can not change the data, engineering technicians use the interface with a cipher input after the engineering technicians can download the data change.
Technical Parameters:
YSV-3A Specifications |
|
Model |
YSV-3A |
Max Cutting Length |
500 mm |
Dimension |
99×55×125cm(L*W*H) |
Working pressure |
0.5-0.8 mpa |
Round knife |
125mm×3mm |
Straight knife |
360mm×45mm×6mm |
Equipment power |
150W |
Cutting Speed |
300mm/s |
Cutter point angle |
26~28° |
Conveyor Belt (Options) |
1.5 m |
Cutting thickness |
0.5-5.0mm |
Minimum component distance from v-groove |
1mm |
Voltage |
220 V or 110V, 50/60HZ, 150W |
Max component height |
30 mm |
Machine weight |
200kg |
Machine Warranty period |
1 year |
Packaging & Delivery:
Our Service:
Certificates:
Features:
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.
9.WIth high efficient cutting speed and high-quality circle blades.
