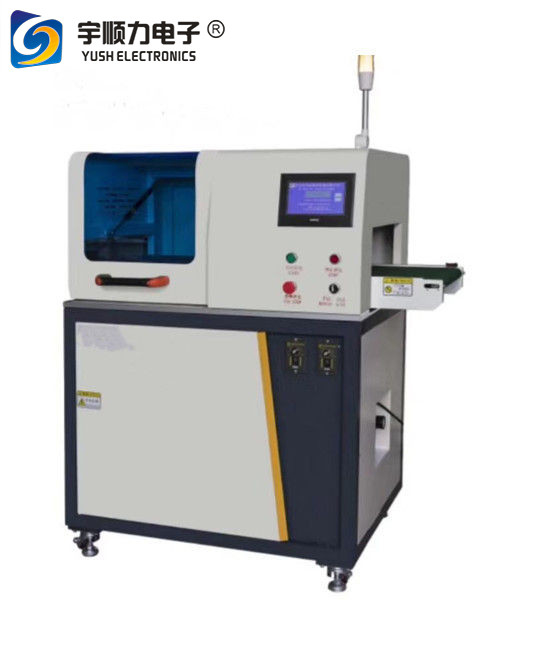

Aluminium Board Separator PCB Depaneling Machine Round Knife ϕ125mm×3mm

Product Details

Place of Origin: Jiangsu

Brand Name: YUSH

Certification: CE

Model Number: YSV-3A

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD1000-30000

Packaging Details: plywooden case

Delivery Time: 6-7days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50sets/month

Get Best Price
High Light:

pcb separator machine

,

pcb depaneling equipment

Machine Size L/W/H:
990×550×1250mm
Blades Size:
Round Knife ϕ125mm×3mm Straight Knife400mm×43.5mm×6mm
Blades Material:
Imported High Speed Steel
Blades Brand:
Yushunli
Cutting Boards Thickness:
One-third Thickness
Cutting Board Length:
1mm-5mm
Cutting Speed:
300mm/s
Machine Size L/W/H:
990×550×1250mm
Blades Size:
Round Knife ϕ125mm×3mm Straight Knife400mm×43.5mm×6mm
Blades Material:
Imported High Speed Steel
Blades Brand:
Yushunli
Cutting Boards Thickness:
One-third Thickness
Cutting Board Length:
1mm-5mm
Cutting Speed:
300mm/s
Aluminium Board Separator PCB Depaneling Machine Round Knife ϕ125mm×3mm

smt equipment/glass fibre pcb led cutting machine/aluminium board separator depaneling assembly machine

Features:
1. Microcomputer program control, precise positioning and good stability.
2. Separate pre-scored PCB assembly without stress on either PCB or component;
3. One touch programming of cut length with digital display;
4. Separating speed is adjusted by a rotary knob;
5. Handle Intermittent scoring or cut-outs;
6. Board with projected component can be cut precisely;
7. Large stainless steel platform on both side of cutting lade prevents board wobble and table height and angle are adjustable;
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out.

Product Introduction:
The machine using PLC and touch screen control system, with the function of memory (it can store 100 sets of data), the function of convenient operation (as long as the product data stored) directly download is not required to be arranged setting again, fast changing plate segmentation, to achieve a variety of plate type split operation machine. The machine is provided with operator interface and engineering technicians use interface, product data operation technicians use interface can download the relative production, but can not change the data, engineering technicians use the interface with a cipher input after the engineering technicians can download the data change.

Aluminium Board Separator PCB Depaneling Machine Round Knife ϕ125mm×3mm 0



Technical Parameters:


YSV-3A Specifications

Model

YSV-3A

Max Cutting Length

500 mm

Dimension

99×55×125cm(L*W*H)

Working pressure

0.5-0.8 mpa

Round knife

125mm×3mm

Straight knife

360mm×45mm×6mm

Equipment power

150W

Cutting Speed

300mm/s

Cutter point angle

26~28°

Conveyor Belt (Options)

1.5 m

Cutting thickness

0.5-5.0mm

Minimum component distance from v-groove

1mm

Voltage

220 V or 110V, 50/60HZ, 150W

Max component height

30 mm

Machine weight

200kg

Machine Warranty period

1 year
