Fully Automatic Bidirectional PCB Depaneling Machine/Pcb Depanelizer YSV-5A

Name: Fully Automatic Bidirectional PCB Depaneling Machine/Pcb Depanelizer YSV-5A
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSPE
Price: 250,000.00 USD
Availability: InStock

Product Details

Place of Origin: SuZhou

Brand Name: YUSHLI

Certification: CE

Model Number: YSPE

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD

Packaging Details: plywood case

Payment Terms: T/T L/C paypal west union credit card

Supply Ability: 20sets/ month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                pcb separator machine, pcb depaneling equipment, Bidirectional PCB Depaneling Machine


Track Height:	PCB Standard Track	PCB Thickness:	0.5-2mm(PCB Curvature：≦3m M
Pcb Size:	300*300mm	PCB Component Height:	Upper20mm Lower10mm
Positioning Accuracy:	≦10um	Machine Size:	80015001650mm
Machine Weigth:	400kg

Track Height:	PCB Standard Track
PCB Thickness:	0.5-2mm(PCB Curvature：≦3m M
Pcb Size:	300*300mm
PCB Component Height:	Upper20mm Lower10mm
Positioning Accuracy:	≦10um
Machine Size:	80015001650mm
Machine Weigth:	400kg

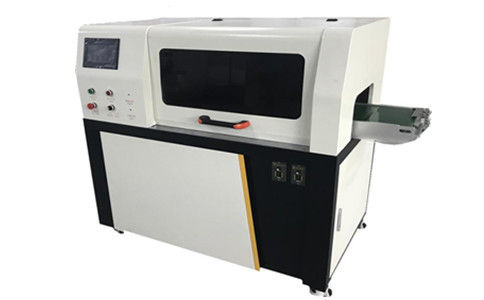

Fully Automatic Bidirectional PCB Depaneling Machine/Pcb Depanelizer YSV-5A

Fully automatic bidirectional PCB depaneling machine/pcb depanelizer YSV-5A

Working environment

ØWork place: Clean room

Ø2.1 General conditions and requirements

ØThe ambient temperature (0 degrees to 40 degrees) and the humidity of the air fluctuate according to the season, the equipment essential functions need to operate under the following environment data:

ØIndoor temperature 0 degrees - 40 degrees

ØAir humidity 10% - 80%

ØEnvironmental noise 40dB - 80dB

ØVibration speed 1mm/s - 5mm/S

Speicifcation:

Mechanical System	PCB Size	300*300mm
	PCB thickness	0.5-2mm(PCB Curvature:≦3m m)
	PCB Component height	upper20mm lower10mm
	Drive equipment
	Exercise system
	positioning accuracy	≦10um
	Transport track	PCB Standard track
	Track Height	450±5mm
Machine parameters	power	AC220V 50Hz 500W
	Machine size	80015001650mm
	Weigth	400KG
Robot picking range	X Axis
	y Axis
	Z Axis
	W Axis

Fully Automatic Bidirectional PCB Depaneling Machine/Pcb Depanelizer YSV-5A 0
