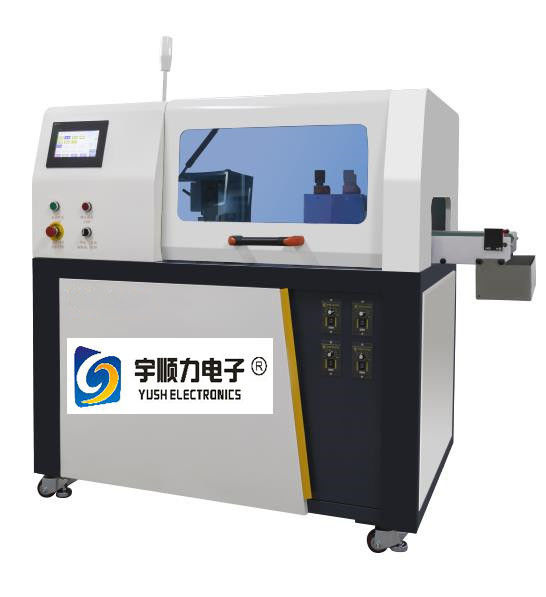

Double Direction PCB Depaneling Machine With Stepper / Servo Motor

Double Direction PCB Depaneling Machine With Stepper  / Servo Motor
Double Direction PCB Depaneling Machine With Stepper  / Servo Motor Double Direction PCB Depaneling Machine With Stepper  / Servo Motor Double Direction PCB Depaneling Machine With Stepper  / Servo Motor Double Direction PCB Depaneling Machine With Stepper  / Servo Motor

Large Image :  Double Direction PCB Depaneling Machine With Stepper / Servo Motor

Product Details:
Place of Origin: JiangSu
Brand Name: YUSHUNLI
Certification: CE Mark
Model Number: YSV-5A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 25800 USD
Packaging Details: wooden package
Delivery Time: 3 days to 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100

Double Direction PCB Depaneling Machine With Stepper / Servo Motor

Description
Voltage: 220V/110V Machine Weight: 300KG
Working Air Pressure: 0.5-0.8MPA Machine Size: L1250(1560)mm*W800mm*H1295mm
Cutting Speed: 300-500mm/s Equipment Power: 300KW(Except Vacuum Cleaner)
Cutting Thickness: One-third Thickness Board Width: Single Boards 12mm(Whole Board300mm)
Blades Size: Round Blades∮80 ∮60 Straight Knife 356×43.5×6
High Light:

pcb depanelizer

,

pcb depaneling equipment

,

PCB Depaneling Machine With Stepper Motor

Automatic double direction PCB Depaneling Machine(model:YSV-5A)



Features:

1. The machine can be fully automatic two-way board.
2. The machine can also be divided horizontally or vertically.
3. The machine can achieve rapid replacement of the product, fast modular conversion.
4. It can dock the upper and lower board machines to realize fully automated production and save labor.
5. Simple operation, training can be used to master.
6. Unique new tool design, durability increased by 1.5 times.



Specification parameters:

Item YSV-5A
Name Automatic double direction pcb depaneling machine
DimensionsL/W/H 1250(1560)mm×800mm×1295mm
Blades size Round blades∮80 ∮60 Straight knife 356×43.5×6
Blade material Imported high quality high speed steel
Blades brand yushunli
Board width Single boards 12mm(Whole board300mm)
Drive system motor Stepper motor / servo (optional)
Cutting speed 300-500mm/s
Cutting boards types Two-way V-CUT well type products, single direction V-CUT products
V-CUTthickness One-third thickness
Working pressure



0.5-0.8MPA

Operating Voltage 220V/110V Optional
Equipment power 300KW(Except Vacuum cleaner )
Machine weight 300KG



DEMO Exhibition:

Double Direction PCB Depaneling Machine With Stepper  / Servo Motor 0

Double Direction PCB Depaneling Machine With Stepper  / Servo Motor 1
