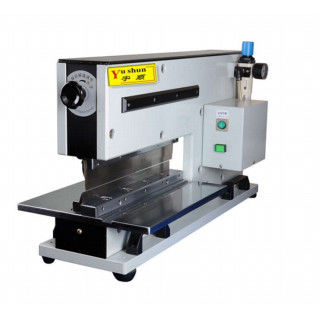

High quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400

Name: High quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSVC-2/YSVC-200/YSVC-400
Price: 3000 USD
Availability: InStock

Product Details

Place of Origin: JiangSu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSVC-2/YSVC-200/YSVC-400

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD3000

Packaging Details: Plywooden case

Delivery Time: 3 days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price

Product Details

Product Description

Highlight:

Dimension:	450200460mm	Blades Length:	200mm
Air Requirement:	0.7Mpa	Cutting Thickness:	0.6~5.0mm
Voltage:	220V,50HZ, 110V,50HZ(option)	Max Component Height:	70mm

Dimension:	450200460mm
Blades Length:	200mm
Air Requirement:	0.7Mpa
Cutting Thickness:	0.6~5.0mm
Voltage:	220V,50HZ, 110V,50HZ(option)
Max Component Height:	70mm

High quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400

High Quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400

Feature

●Separates boards up to 3.5mm thick;

●Shears boards safely with parts as close as 0.5mm to the score line,including

ceramic capacitors;

●Operator foolproof! Panels cannot be inserted into the knives except on the

score line;

●Pneumatically driven;

●Handles high components up to70mm;

●Bow waves that can occur with round knives are avoided;

●Easy adjusting of distance between knives.

High quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400 0

● Adjust blades to PCB score line using rotary knob.

● Boards are separated without bending or breaking.

● Safe for use with flexible and thin (to 0.5mm) PCBs.

● Smooth, quiet pneumatic-powered unit with foot -pedal activation.

● Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion.

● Can be used with aluminum and other substrates, including substrates with metal inner layers.

Pneumatic PCB depaneling machine Specifications
Model	YSVC-200	YSVC-2	YSVC-400
Dimension	450200460mm	620230400mm	960×425×350mm
Blades length	200mm	330mm	400mm
Air requirement	0.7Mpa	0.7Mpa	0.7Mpa
Cutting thickness	0.6~5.0mm	0.6~5.0mm	0.6~5.0mm
Minimum component distance from v-groove		1mm
Voltage	220V,50HZ, 110V,50HZ(option)
Max component height	70mm
Machine weight	130kg	185kg	210kg
Machine Warranty period		One year

Machine drawing

High quality Pneumatic PCB Depaneling Machine YSVC-200 /YSVC-2/YSVC-400 3

Machine video reference URL

https://www.youtube.com/watch?v=07Gl10z1xIg

https://www.youtube.com/watch?v=AJMoFzCl-8c

https://www.youtube.com/watch?v=JWDAggG3wUI YSVC-200

PACKAGE PHOTO

Machine CE certificate
