Long Life PCB LED Cutting Machine With Computer Screen Control Unit

Long Life PCB LED Cutting Machine With Computer Screen Control Unit

  • High Light

    pcb board cutting machine

    ,

    v cut pcb depaneling machine

  • PCB Cutting Thickness A
    0.4-3.2mm
  • V-groove Cut PCB Board Thickness B
    Standard Value A Thickness Of 1/3
  • Maximum
    0.8mm
  • V-groove Sizes Minimum C
    0.25mm
  • Increase The Apparent Size Of The Cropped
    0.1-0.2mm
  • Storage Temperature
    -20-50 ℃
  • Place of Origin
    JUANGSU
  • Brand Name
    YUSH
  • Certification
    CE
  • Model Number
    YSVJ-650
  • Minimum Order Quantity
    1 set
  • Price
    38000-40000 USD
  • Packaging Details
    Plywooden case
  • Delivery Time
    3 days
  • Payment Terms
    D/P, Western Union, D/P, L/C, T/T

Long Life PCB LED Cutting Machine With Computer Screen Control Unit



Long Life PCB Depaneling Machine Computer Screen Control Unit





 Features:



1. pcb board manufacturing process de-panelling machine,cost of pcb board de-panelling machine


2. The machine adopts computer screen control unit has a counter, can be preset process yield, up and down cutter cutting the gap with a display screen visual display;

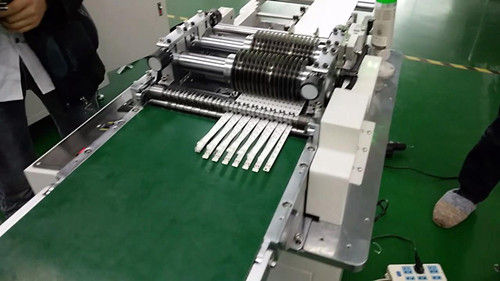

Multi-group knife



3.  When PCB board sub-board cut, one can cut a plurality of plates;


4.  The whole machine cutter wheel trim: 0-5mm;



5.  distance between the knife and the knife can be adjusted for cutting a single PCB board width of 15-20mm;


6.  Imported SKH51 high-speed steel blade, wear-resistant, long life;


7. Cut speed can be set by the board to facilitate adjustment knob;


8.  scoreboard stroke limitation;


9. PC board split thickness: 0.2-5.0mm;


10.  conveyor belt line drawings can be installed on a separate PCB board can be sent directly out easy job, you can direct docking with the water pull, reducing take place;


11.  This machine acceptable to accommodate the LED panels, fiberboard, aluminum plate (400mm above the long plate) and special plates segmentation;


12.  The machine uses simpler knife sub-board operation, high efficiency for the production batch.


The technical instructions:
Maximum scoreboard length: unlimited
Min thickness: 0.6-5.0mm
Sent to board speed: 300-500mm / sec
Blade Material: SKD11
Working temperature: 10-35 ℃
Storage temperature: -20-50 ℃
Power: 230V
Dimensions: 2160mm * 570mm * 1050mm
