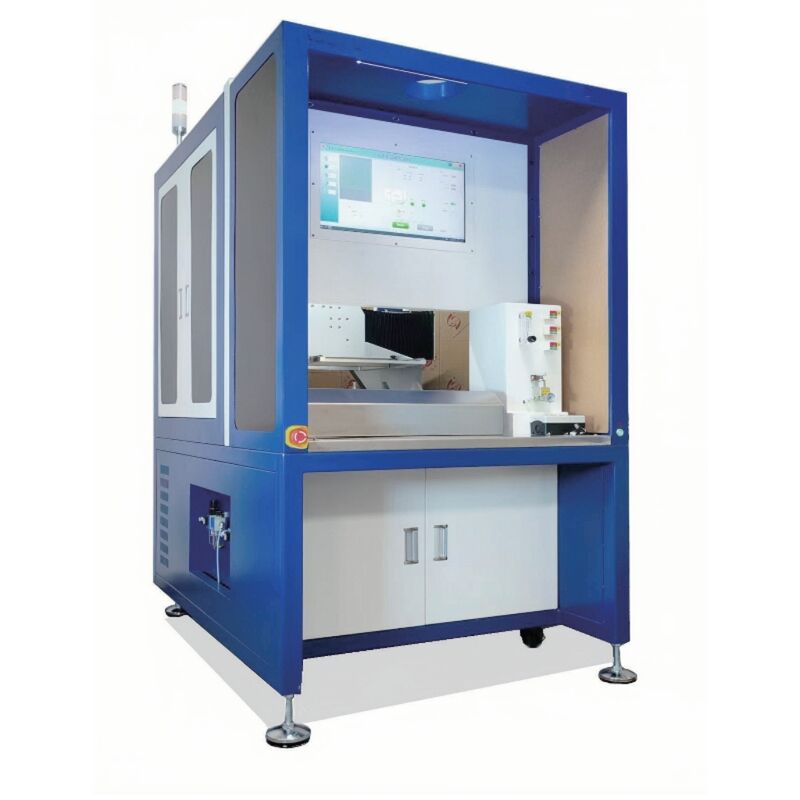

High Speed Off-Line Selective Wave Soldering Machine for PCB Assembly

Name: High Speed Off-Line Selective Wave Soldering Machine for PCB Assembly
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-300
Price: 29500 USD
Availability: InStock

Product Details

Place of Origin: China,Guangdong

Brand Name: YUSH

Certification: CE

Model Number: YSL-300

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 29500

Packaging Details: wooden case

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                high speed PCB wave soldering machine, off-line selective wave soldering equipment, SMT assembly wave soldering machine


High Speed Off-Line Selective Wave Soldering Machine for PCB Assembly

Key Features & Benefits

High-Speed Off-Line Operation: Designed for off-line PCB selective soldering applications, providing flexible production and process management.
Precise Selective Soldering: Programmable XYZ motion system allows the soldering nozzle to follow specified paths and accurately target designated solder joints.
Flexible Soldering Head Configuration: Standard configuration includes one soldering head, with two-head configuration available as an option.
Stable Infrared Preheating: Bottom infrared preheating provides controlled thermal preparation before selective soldering.
Accurate Temperature Control: PID + SSR temperature control supports stable soldering conditions with maximum temperature setting of 350°C and accuracy of ±2°C.
High Positioning Accuracy: Specified soldering accuracy reaches ±0.05 mm for precision PCB soldering applications.
Closed-Type Machine Structure: Enclosed configuration provides a controlled operating environment for the selective soldering process.

Technical Specifications

Parameter	YSL-300
Machine Model	YSL-300
Overall Dimensions	1430 × 1000 × 1820 mm
PCB Size	Min. 30 × 30 mm / Max. 400 × 300 mm
Machine Appearance	Closed Type
Preheating Method	Bottom Infrared Preheating
Number of Soldering Heads	1 pc (2 pcs optional)
Operating Height	900 ± 20 mm
Weight	Approx. 420 kg
Flux Capacity	1 L
Power Supply	1 Phase, 220V, 50/60Hz
Total Power	7.5 kW
Temperature Control Mode	PID + SSR
Temperature Setting Range	Max. 350°C
Temperature Accuracy	±2°C
Wave Height	Max. 0-8 mm
Soldering Accuracy	±0.05 mm
Motion Axis	X / Y / Z
Nitrogen Consumption	1.5-2 m³/h
Nitrogen Purity	>99.99%

Manufacturer Profile

YUSH Electronic Technology Co., Ltd was founded in 2004 and is located in Jiangsu, China - a world manufacturing hub. The company specializes in professional PCB separator and depanelizer electronic equipment machinery.

YUSH has advanced production and processing equipment along with an experienced development and manufacturing team, with half of the team members having over 10 years of experience in the electronic equipment industry.

Since 2004, the company has focused on developing and manufacturing PCB separators and depaneling machines, emphasizing product quality, safety, and innovation. YUSH has produced many high-quality, stable performance, cost-effective products that help improve production yields, increase productivity, and enhance customer market competitiveness.

The company offers various types of PCB separators and depaneling machines including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router models. Due to excellent quality and reasonable pricing, YUSH serves customers worldwide and has become one of the largest PCB separator production bases in China.
