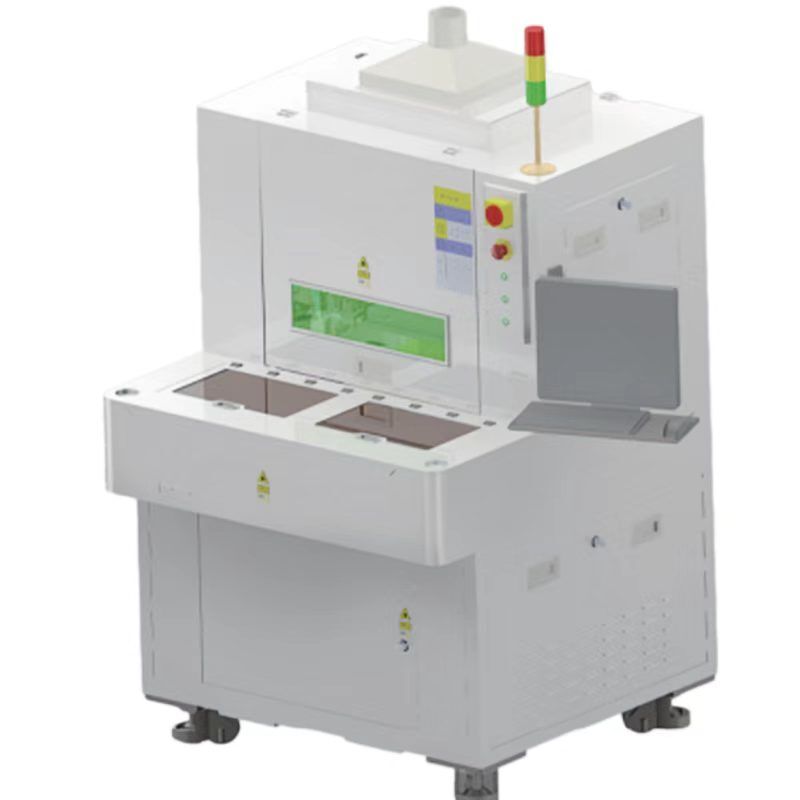

SMT High Precision Vertical Dual-Station Laser Soldering Machine for PCB & FPC

Product Details

Place of Origin: China,Guangdong

Brand Name: YUSH

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 29000

Packaging Details: wooden case

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                SMT vertical dual-station laser soldering machine, high precision PCB laser soldering machine, FPC laser soldering machine with warranty


SMT High Precision Vertical Dual-Station Laser Soldering Machine for PCB & FPC

Advanced Laser Soldering Technology

This high-precision vertical dual-station laser soldering machine delivers exceptional performance for PCB and FPC applications with advanced temperature monitoring and non-contact soldering capabilities.

Key Advantages

Infrared temperature sensor monitors solder joint temperature in real-time, preventing component damage from excessive heat
Non-contact operation eliminates stress on workpieces
Quantified soldering data for easy analysis and process optimization
Fast laser heating rate enables high soldering speed
CCD vision positioning ensures exceptional accuracy
Five-light coaxial achromatic optical system expands soldering process capabilities
Unique PC-based software control system with user-friendly interface and comprehensive functionality

Technical Specifications

Power Supply	AC 220V ±10V
Equipment Power Consumption	1200W
Solder Material Specifications	Compatible with solder wire and solder paste
Operating Environment	25°C ±5°C
Positioning Method	CCD Vision Automatic Positioning
Laser Power	70W / 100W / 150W
Working Distance	100mm - 130mm (Optical Continuous Adjustable Technology)
Product Dimensions	1100 × 110 × 1850mm
Effective Travel Distance	300 × 300 × 150mm (Customizable)
Spot Type	Circular Spot / Special-shaped Spot (Optional)
Repeatability Accuracy	≤ 0.02mm
CCD Positioning Accuracy	≤ 0.03mm
Programming Method	Visual Programming, PC Operation
Temperature Control Method	Real-time Temperature Control

Precision Engineering

Designed for high-volume PCB and FPC production, this laser soldering machine combines precision positioning with advanced temperature control to deliver consistent, high-quality results.
