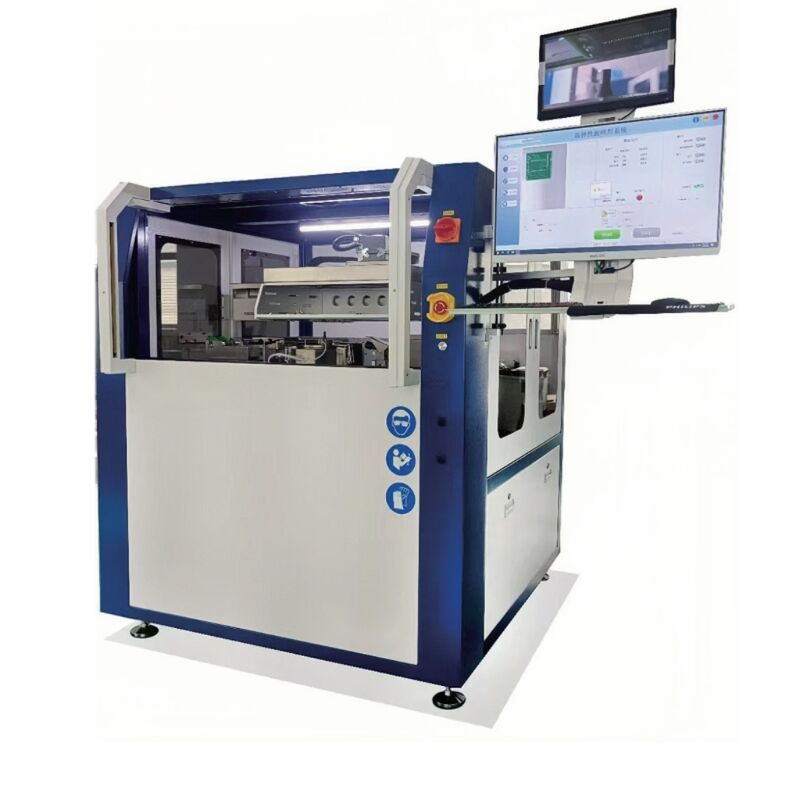

High Precision PCB Selective Wave Soldering Machine
Advanced selective wave soldering equipment designed for precision electronics manufacturing with closed-loop servo control and nitrogen atmosphere soldering capabilities.
Technical Specifications
| Specification |
Details |
| Machine Model |
YSL-450 |
| Overall Dimensions |
1350(L) × 1500(W) × 1650(H) mm |
| PCB Size Range |
Min: 30(L) × 30(W) mm | Max: 450(L) × 400(W) mm |
| Machine Design |
Closed-type Construction |
| Preheating System |
Top and Bottom Preheating |
| Operating Height |
900 ± 20 mm |
| Weight |
Approximately 500 kg |
| Flux Capacity |
1 Liter |
| Power Supply |
AC 380V 3-phase, 50/60Hz |
| Total Power |
14 kW |
| Temperature Control |
PID + SSR |
| Temperature Range |
Maximum 350°C |
| Temperature Accuracy |
±2°C |
| Wave Height |
Maximum 0-8 mm |
| Soldering Accuracy |
±0.05 mm |
| Motion System |
XYZ Axis |
| Motion Control |
Closed-loop Servo Control |
| Nitrogen Consumption |
1.5-2 m³/h (99.999% purity) |
Key Features
- High precision soldering with ±0.05mm accuracy
- Closed-loop servo control for precise motion
- Dual preheating system (top and bottom)
- Nitrogen atmosphere soldering capability
- PID temperature control with SSR technology
- Compact closed-type design
Manufacturer Profile
YUSH Electronic Technology Co., Ltd., founded in 2004 and based in Jiangsu, China, specializes in professional PCB separation and depaneling electronic equipment machinery. With advanced production facilities and an experienced team—half with over 10 years in the electronic equipment industry—we focus on product quality, safety, and innovation.
Since 2004, we have developed high-quality, stable-performance PCB separation equipment including manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router types. Our cost-effective solutions help customers improve production yields and enhance market competitiveness.
Frequently Asked Questions
Who are we?
Based in Jiangsu, China, we've been serving global markets since 2014, with customers in Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our team comprises 301-500 professionals.
How do we guarantee quality?
We conduct pre-production sampling before mass production and perform final inspection before shipment to ensure consistent quality standards.
What products do we offer?
PCB depaneling machines, PCB separators, PCB cutting machines, V-cut machines, and PCB depaneling equipment.
Why choose us over other suppliers?
With nearly two decades of experience since 2004, advanced production equipment, and specialized expertise in PCB separation technology, we deliver high-quality, innovative solutions with excellent cost-performance ratios.
