Automatic Rotary Table Selective Wave Soldering System with Nitrogen Protection

Name: Automatic Rotary Table Selective Wave Soldering System with Nitrogen Protection
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-1006
Price: 29000 USD
Availability: InStock

Product Details

Place of Origin: China,Guangdong

Brand Name: YUSH

Certification: CE

Model Number: YSL-1006

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 29000

Packaging Details: wooden case

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 1000

Get Best Price

Product Details

Product Description

Highlight:
                                                Automatic Rotary Table Soldering System, Selective Wave Soldering Machine with Nitrogen, Nitrogen Protection Soldering System

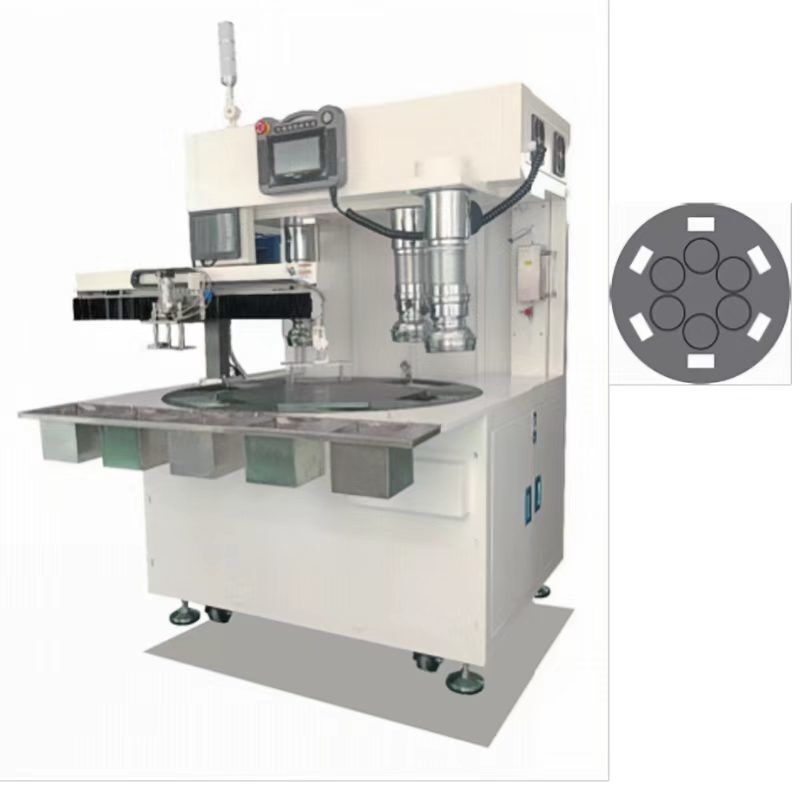

Automatic Rotary Table Selective Wave Soldering System with Nitrogen Protection

Advanced rotary table selective wave soldering system designed for precision soldering applications with high accuracy and reliability.

Technical Specifications

Specification	Details
Machine Model	YSL-1006
Overall Dimensions	1130L × 1250W × 1700H (mm)
PCB Size Range	Min: 30(L) × 30(W) mm Max: 240(L) × 140(W) mm
Machine Appearance	Closed-type
Preheating Method	Bottom infrared preheating
Operating Height	780 ± 20mm
Weight	Approximately 500KG
Disk Size	Diameter 950mm
Power Supply	1Φ 220V 50/60HZ
Total Power	3KW
Temperature Control Mode	PID + SSR
Temperature Setting Range	Maximum 350°C
Temperature Accuracy	±2°C
Wave Height	Maximum 0-8mm
Soldering Accuracy	±0.05mm
Motion Axis	XYZ
Motion Control	Stepper motor
N₂ Consumption	1.5-2m³/h (Nitrogen concentration > 99.999%)

Company Profile

YUSH Electronic Technology Co., Ltd. was founded in 2004 and is located in Jiangsu, China's world manufacturing hub. We specialize in professional PCB separator and PCB depanelizer electronic equipment machinery.

The company maintains advanced production and processing equipment with an experienced development and manufacturing team. Over half of our team members possess more than 10 years of experience in the electronic equipment industry.

Since 2004, our leadership has focused on developing and manufacturing PCB separators and depaneling machines. We prioritize product quality, safety, and innovation, resulting in high-quality, stable-performance, and cost-effective products that improve production yields and enhance customer competitiveness.

Our product range includes various PCB separation types with manual, motor-driven, pneumatic-driven, mold punching, and milling cutter router options. Due to our commitment to quality and competitive pricing, we serve customers worldwide and have become one of China's largest PCB separator production bases.

Frequently Asked Questions

Who are we?

Based in Jiangsu, China since 2014, we serve global markets including Eastern Europe (20%), North America (20%), South America (15%), Southern Europe (10%), Northern Europe (10%), Western Europe (10%), South Asia (10%), and Mid East (5%). Our organization employs 301-500 professionals.

How do we guarantee quality?

We maintain strict quality control through pre-production samples before mass production and final inspection before shipment.

What products do we offer?

PCB depaneling, PCB separator, PCB cutting machine, PCB depaneler, and V-cut machine solutions.

Why choose us over other suppliers?

YUSH Electronic Technology Co., Ltd. brings over 18 years of expertise since 2004, located in China's manufacturing hub of Jiangsu. We combine advanced production equipment with experienced engineering teams to deliver professional PCB separation equipment.

What services do we provide?

Delivery Terms

FOB, CIF, EXW, DDP, DDU, Express Delivery, DAF

Payment Currencies

USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF

Payment Methods

T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Languages

English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, Korean, Hindi
