Highlight:
Wave Soldering Machine
, Smt Production Wave Soldering Machine
Dimension: |
3600*1400*1750mm |
Weight: |
Approximately:1100kg |
Control Systems: |
PC With Window 7+PLC |
Start Up Power: |
6-8 KW |
Direction: |
Left To Right ,Front Fix(R To L) |
Conveyor Speed: |
300-2000mm |
Conveyor Speed Control Method: |
Motor(Panasonic) |
Conveyor Angle: |
4-7° |
PCB Component Height%22Top 120mm Bottom: |
15mm |
Power Supply: |
3ph,AC380V/220V 50HZ |
The Capacity Of Solder Pot: |
280KG |

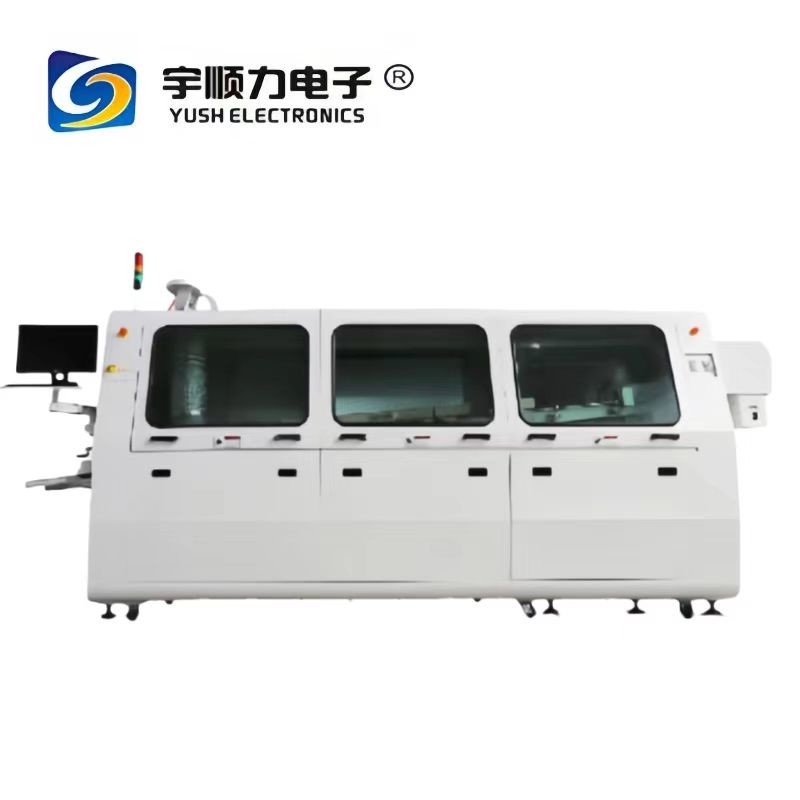

Wave Soldering Machine T300 For Smt Production Line
INTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled,
accurate and reliable.
4. Flux recovery container drawer design, easy to clean.
5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure
the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators’safety.
|
General specification
|
Dimension;3600*1400*1750mm |
| Weight:Approximately:1100kg |
| Start Up Power:Approx 19KW |
| Normal running power :6-8 KW |
| Power supply :3ph,AC380V/220V 50HZ |
| Control systems:PC With Window 7+PLC |
| PCB counter |
|
Conveyor systems
|
Direction: Left to Right ,Front Fix(R to L) |
| Titanium Alloy V shape Finger |
| 300mm PCB loading buffer at entrance |
| Conveyor speed control method: Motor(Panasonic) |
| Conveyor speed:300-2000mm |
| Conveyor angle:4-7° |
| PCB Component Height”Top 120mm bottom:15mm |
| |
Stepper motor drive reciprocating Spray |
| 7-UP ST-8 Nozzles |
| The capacity of Flux is 6.5/liter |
| Flux auto Feeding (Option) |
|
|
| Spay Flux Systems |
Spary air pressure:3-5bar |
| Modular structure for easy maintenance |
|
Heating system
|
Heating zones :Bottom 3 zones, |
| The Length of heating zones:1450mm |
| Heating method:Forces hot air |
| Heating zones modularization easy to maintenance |
|
Solder pot
|
The capacity of solder pot :280KG |
| Two wave :Turbulence Wave and Lambda 2nd Wave |
| Materials :Titanium alloy (Op:Cast iron enamel) |
| Cleaning Finger systems. |
|
|
Spare Parts :
| NO. |
Spares Name |
Brand |
Origin |
| 1 |
Display |
Acer |
China |
| 2 |
Computer |
Industrial computer |
China |
| 3 |
PLC |
Siemens |
Germany |
| 4 |
Temperature control module |
Siemens |
Germany |
| 5 |
90W conveying Motor |
Panasonic |
Japan |
| 6 |
Solder pot wave motor |
ZIK |
China |
| 7 |
Preheating Coils |
Taizhan |
China |
| 8 |
Solder pot heating tube |
Taizhan |
China |
| 9 |
Main Switch |
Mitsubishi |
Japan |
| 10 |
Contactor and currency limiter |
OMRON |
Japan |
| 11 |
Intermediate relay |
OMRON |
Japan |
| 12 |
Fuse holder and fuse tube |
OMRON |
Japan |
| 13 |
Programming controller |
CARLO GAVAZZI |
Switzerland |
| 14 |
Frequency Converter |
Delta |
Taiwan |
| 15 |
Power button and indicator light |
Izumi |
Japan |
| 16 |
Temperature detector |
Nihon Dennetu |
Japan |
| 17 |
SSR |
CARLO GAVAZZI |
Switzerland |
| 18 |
Photoelectric sensor |
SICK |
Japan |
| 19 |
Cylinder |
SMC |
Japan |
| 20 |
Flux sprayer |
7-UP |
Taiwan |
| 21 |
Patented titanium alloy claws |
JAGUAR |
China |
| 22 |
Air/Main Switch |
CHNT |
China |
| 23 |
AC Contactor |
CHNT |
China |
| 24 |
Button Switch |
Schneider |
France |
