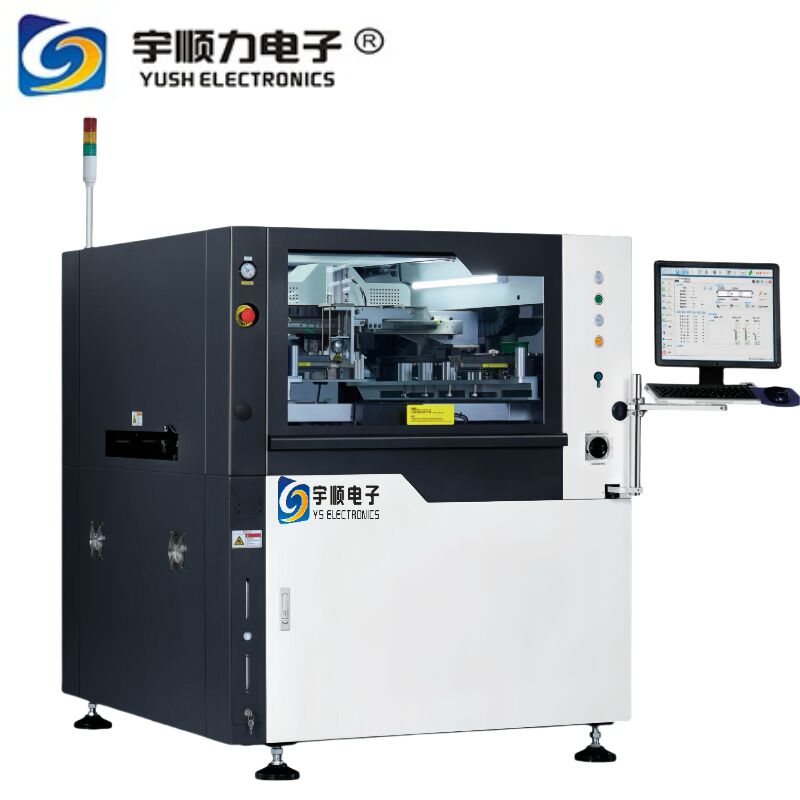

High Precision Fully Automatic Solder Paste Printer for PCB Production
High Precision Fully Automatic Solder Paste Printer for PCB Production
Machine Performance Specifications
| Repeat Position Accuracy | ±10μm@6σ, CPK≥2.0 |
|---|
| Print Accuracy | ±18μm@6σ, CPK≥2.0 |
|---|
| NCP-CT (excluding cleaning and printing) | <7.5 sec |
|---|
| HCP-CT (including cleaning and printing) | 18s/pcs |
|---|
| Process CT | 4min |
|---|
| Transfer Line CT | 2min |
|---|
Substrate Processing Parameters
| Maximum board size | 510*510mm (Optional upgrade to: 610*510mm) |
|---|
| Minimum board size | 50*50mm |
|---|
| Board thickness | 0.4~6mm |
|---|
| Camera Mechanical range | 528*510mm |
|---|
| Maximum board weight | 5kg |
|---|
| Board edge clearance | 2.5mm |
|---|
| Board height | 23mm Beyond trait items pin |
|---|
| Transport speed | 900±40mm |
|---|
| Maximum Transport speed | Segmented control, 1500mm/s (Max) |
|---|
| Transport direction | One stage |
|---|
Printing Parameters
| Print Speed | 10~200mm/sec |
|---|
| Print Pressure | 0.5~20Kg |
|---|
| Print Mode | One/Twice |
|---|
| Squeegee Type | Rubber/Squeegee Blade (angle 45/55/60) |
|---|
| Snap-off | 0~20mm |
|---|
| Snap-Speed | 0~20mm/sec |
|---|
| Template frame size | 470*370mm~737*737mm |
|---|
| Steel mesh positioning method | Automatic Y-direction positioning |
|---|
Cleaning Parameters
| Cleaning System | Dry, Wet, Vacuum three modes |
|---|
| High speed cleaning | Integrated & weave cleaning |
|---|
| Cleaning system | Side spray type |
|---|
| Cleaning stroke | Automatic generation |
|---|
| Cleaning position | Post cleaning |
|---|
| Cleaning Speed | 10-200mm/sec |
|---|
| Cleaning fluid consumption | Auto & Manually adjustable |
|---|
| Cleaning paper consumption | Auto & Manually adjustable |
|---|
Vision Parameters
| CCD FOV | 10*8mm |
|---|
| Camera type | 130 Thousand CCD Digital camera |
|---|
| Camera System | Lock up/down optics structure |
|---|
| Camera Cycle time | 100ms |
|---|
| Fiducial mark types | Standard Fiducial Mark Shape: round, square, diamond, cross, Pad and profile |
|---|
| Mark size | 0.1-6mm |
|---|
| Mark number | Max: 4pcs |
|---|
| Stay away number | Max: 1pcs |
|---|
Machine Parameters
| Power Source | AC: 220±10%, 50/60Hz 2.2KW |
|---|
| Air Pressure | 4~6Kgf/cm² |
|---|
| Air Consumption | About 5L/min |
|---|
| Operating Temperature | -20℃~+45℃ |
|---|
| Working environment humidity | 30%~60% |
|---|
| Machine dimension (without Tower light) | 1500(H)mm |
|---|
| Machine Length | 1240(L)mm |
|---|
| Machine Width | 1410(W)mm |
|---|
| Machine Weight Approx | Approx: About 1100Kg |
|---|
| Equipment load bearing requirements | 650Kg/m² |
|---|
Equipment Specifications
Equipment Model: YS-GT
Size: 1240(L) * 1410(W) * 1500(H)mm
Power Requirements
Main power supply: AC: 220 ± 10%, 50/60HZ 3KW stable power supply with rated current, plug type: British system.
Gas Supply Requirements
Main gas supply: A stable industrial gas source with a pressure of 4.0-6kgf/cm². The diameter of the gas pipe is 6mm/8mm/10mm/12mm, and the front joint of the gas pipe is universal.
Machine Weight
Approximately 1100Kg
Equipment Usage Environment
- Workshop temperature: -20℃~+45℃
- Workshop humidity: 30-60%
- Static electricity protection: ESD grounding and static electricity protection are required
- Floor load-bearing capacity: Must be ≥ 650kg/m²
