Full Auto High Accuracy Stencil Printer F450 For SMT Protection Line

Name: Full Auto High Accuracy Stencil Printer F450 For SMT Protection Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: F450
Price: 20000 USD
Availability: InStock

Product Details

Place of Origin: jiangshu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: F450

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 20000

Packaging Details: wooden package

Delivery Time: 30 days

Payment Terms: T/T

Supply Ability: 100Set per Month

Get Best Price

Product Details

Product Description

Highlight:

Max Board Size:	450mm X 350mm	Min Board Size:	50mm X 50mm
PCB Thickness:	0.4mm~6mm	Warpage:	Max. PCB Diagonal 1%
Max Board Weight:	6Kg	Board Edge Spacing:	Configuration To 3mm
Max Bottom Spacing:	20mm	Transmission Speed:	1500mm/s(Max)

Max Board Size:	450mm X 350mm
Min Board Size:	50mm X 50mm
PCB Thickness:	0.4mm~6mm
Warpage:	Max. PCB Diagonal 1%
Max Board Weight:	6Kg
Board Edge Spacing:	Configuration To 3mm
Max Bottom Spacing:	20mm
Transmission Speed:	1500mm/s(Max)

Full Auto High Accuracy Stencil Printer F450 For SMT Protection Line

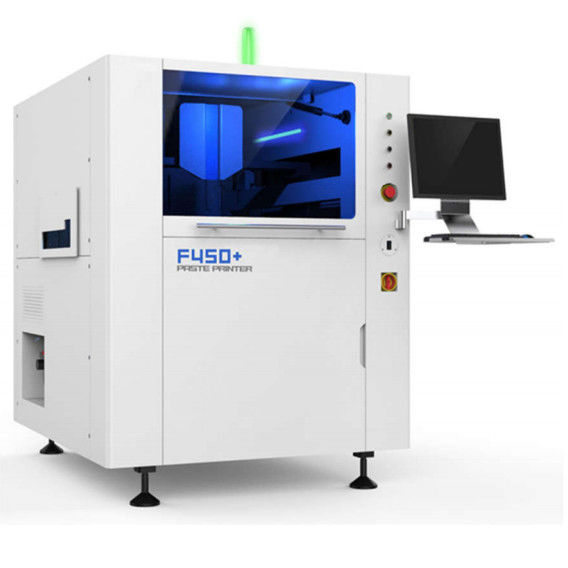

Full auto High Accuracy Stencil Printer F450

Description:

F450+™ Parameters
PCB parameters
Max board size	450mm x 350mm
Min board size	50mm x 50mm
PCB thickness	0.4mm~6mm
Warpage	Max. PCB diagonal 1%
Max board weight	6Kg
Board edge spacing	configuration to 3mm
Max bottom spacing	20mm
Transmission speed	1500mm/s(Max)
Transmission height to the land	900±40mm
Transmission direction	Left-Right, Right-Left, Left-Left, Right-Right
Transmission method	One-stage transmission rail
PCB pick-up method	Software can change the elastic lateral pressure(Optional: multipoint on the bottom or partial vacuum or whole vacuum).
Board supporting method	Magnetic thimble, contour blocks, special workpiece fixture
Printing parameters
Printing head	Two independent straight league motor drives
Template frame size	370mm x 470mm(470 left/right placed)~737 mm x 737 mm
Max printing area	450mm x 350mm
Scraper type	Stencil scraper/rubber scra er(angle 45°/55°/60° select according to the printing technology)
Printing mode	Single or two scrapers printing
Demoulding length	0.02 mm to 12 mm
Printing speed	6 mm/s to 200 mm/s
Printing pressure	0.5kg to 10Kg
Printing movement	±250 mm (from the center)
Image parameters
Field of view(FOV)	6.4mm x 4.8mm
Table adjustable area	X,Y:±7.0mm θ:±2.0°
Reference point type	Standard reference point(see SMEMA standard),bonding pad/hole
Camera system	Individual camera, Up/down individual imaging visual system, geometric matching positioning
Performance parameters
Imaging alignment repeated accuracy	±12.5μ(±0.0005") @6 σ,Cpk≥2.0
Printing repeated accuracy	±25μ(±0.001") @6 σ,Cpk ≥ 2.0
Cycle time	Less than 7.5s
Replace line time	Less than 5mins
Equipment
Power	AC220V±10%,50/60HZ,15A
Compressed air	4~6Kg/cm2, 10.0 tube
Operation system	Windows XP
Equipment size	1140mm(L) x 1400mm(W) x 1480mm(H)( Do not include the screen and tri-color light height)
Equipment weight	About 1000kg

Full Auto High Accuracy Stencil Printer F450 For SMT Protection Line 0

Full Auto High Accuracy Stencil Printer F450 For SMT Protection Line 1

Full Auto High Accuracy Stencil Printer F450 For SMT Protection Line 2

Feature:

1.Hight stability CCD camera system

Four-way light source adjustable, with uniform illumination and the prefect image collection,making the various types of Mark points can be a very good identification(including the rugged Mark point),to meet the tin,Gold-olated,spray tin ,FPC,and other types of different colors of the PCB.

2.High efficienvy stencil cleaning system

The new wiping system ensures full contact with the stencil,and the increased vacuum suction ensures that the solder paste remaining in the mesh is effectively removed ,and the effective automatic cleaning function is achieved.

3.Simple and reliable PCB positioning system

Adaptive PCB board thickness, software tunable flexible side pressure and magnetic supporting device,

4.Intelligent scraper system

Programmable and independent direct-coupled stepper motor control,built-in precision pressure control system.
