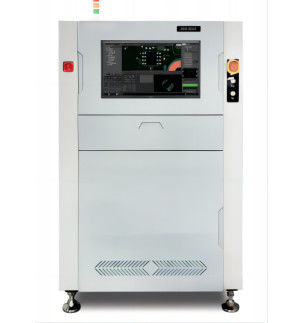

Single/Dual lane 3D Aol For SMT Production Line

Name: Single/Dual lane 3D Aol For SMT Production Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS910
Price: 40000 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YS910

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD40000

Packaging Details: wooden case

Delivery Time: 7days

Payment Terms: T/T, L/C, D/P, T/T, Western Union

Supply Ability: 10sets

Get Best Price

Product Details

Product Description

Highlight:

Weight:	700kg	Power Supply:	220V±10%，50/60Hz,1.6KW
AIr Supply:	0.5mpa,40cm³/min	Operation System:	Windows 10 Pro
Display:	24"LED	Result:	2D/3D True Color

Weight:	700kg
Power Supply:	220V±10%，50/60Hz,1.6KW
AIr Supply:	0.5mpa,40cm³/min
Operation System:	Windows 10 Pro
Display:	24"LED
Result:	2D/3D True Color

Single/Dual lane 3D Aol For SMT Production Line

Single/Dual lane 3D Aol For SMT Production Line

PRODUCT FEATURES:

1.Al intelligent recognition and detection algorithm,achieving fast programming and precise detection

2.High precision control platform

3.The motion platform adopts the double driver system,high-speed,stable,no vibration,no noise

FUNCTION MODULE:

1.The unique 3D point cloud reconstruction technology can gratly improve the detection accuracy and detection avility,can effectively cover the 2D detection blind area,2D is difficult to detect the IC foot,the buoyancy of parts can reach 100%detection rate.

Single/Dual lane 3D Aol For SMT Production Line 0

2.Under the deep coordination of 12MP high-definition COAXPRESS ultra-high speed camera and several sets of 1080P digital projection units,through multi-stage RGBW four-color LED tower light source,360°non- dead angle digital projection and efficient image acquisition and real effect can be achieved.

Single/Dual lane 3D Aol For SMT Production Line 1

3.Phase measuring profilometry(PMP)based on the sinusoidal motion projection by structure grating,the multiple images by discrete phase shift,to calculate the phase distributon by multi-phase,the triangulation and so on to get the high- precision outline and volume of the object,to achieve the display of true-color 3D stereoscopic images.

Single/Dual lane 3D Aol For SMT Production Line 2

Camera	High-Speed CCD 12MP(25MP for option)
Lens	Telecentric Lens
Projection system	4 directional projection gratings
Light	Ring RGBWLED Light
Resolution	15μm(可选12μm,10μm,8μm
FOV	60×45mm(15μm)/48×36mm(12μm)/40×30mm(10μm)
Height resolution	0.4μm
Height Accuracy on a Certificated Target	±3μm
GR&R	≤10%
Shift Position Accuracy	10μm 5μm 10μm 5μm
Inspection Type	Missing,shift,skewed,tombstone,bilboard,overturned,reversed polarity,wrong,damaged,overlow,insufficient,short,dimension.
PCB Warpage	±5mm(2%)
Top side/Bot side clearance	40/40 mm
PCB Thickness	0.5-5.0mm
