Universal X-Ray Inspection System,high Quality 3D Measurement and Non-destructive Analysis.

Name: Universal X-Ray Inspection System,high Quality 3D Measurement and Non-destructive Analysis.
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS-8500
Price: 50000 USD
Availability: InStock

Product Details

Place of Origin: GuangDong

Brand Name: YUSH

Model Number: YS-8500

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD50000

Delivery Time: 20work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:

Weight:	2950kg	Model:	YS-8500
Field Of View:	130mmx130mm	Tube Voltage Range:	25-160KV
Resolution:	5.8Lp/mm

Weight:	2950kg
Model:	YS-8500
Field Of View:	130mmx130mm
Tube Voltage Range:	25-160KV
Resolution:	5.8Lp/mm

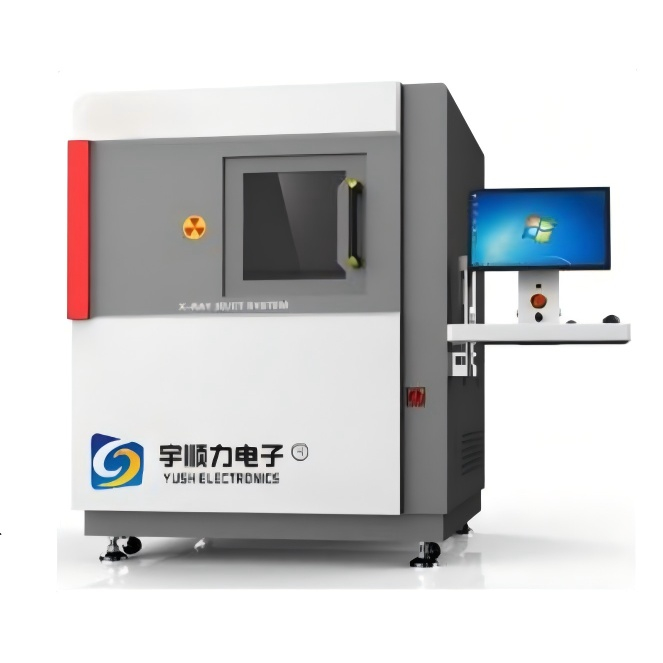

Universal X-Ray Inspection System,high Quality 3D Measurement and Non-destructive Analysis.

Product Introduction

Universal X-Ray Inspection System ,YS-8500 adopts COMET's open X-ray tube design,and its defect inspection capability can reach 0.5um.It can realize 2D/3D/CT and other inspection methods,and is suitable for quality inspection,3D measurement and non-destructive analysis.

Application Advantages

With planar CT function(PCT),it can be applied to 3D/CT inspection of printed circuit boards,SMT,IGBT,wafers,etc.
With cone beam CT function,it can be applied to the inspection of sensors,relays,micro motors,materials, and aluminum castings
Convenient 360°fixed-point observation mode
2D void inspection software module(optional)
3D measurement and analysis software module(optional)

Application Fields

Soldering quality inspection of solder joints on PCB,BGA components,integrated circuits(IC)and their bond wires inspecton,semiconductor package inspection and internal connection,electronic power(IGBT)module inspection,Wafer defect inspection(WLCSP)
Inspection of sensors,relays,fuses,coils,micro drive systems and air bag control systems,micro motors (MEMS,MOEMS),cables and plugs,plastic parts, various materials such as plastics,ceramics,biological materials,optical components,small titanium and aluminum castings

360°Rotating Observation Mode

Product Parameters

Model No.	YS-8500
×-Ray Tube Type	OpenMicrofocusTransmittedRaySource
Tube Voltage Range	25-160KV
Tube Current Range	0.01mA~1.0mA
Maximum Tube Power	64W
MaximumTarget Power	10W
Micro Focus Size	<1μm
Flat Panel Type	AmorphousSilicon FlatPanelDetector (Optional)
Pixel Matrx	1536x1536
Field of View	130mmx130mm
Resolution	5.8Lp/mm
Image Frame Rate(1×1)	20fps
AD Conversion Digits	16bits
Maximum Sample Size	750mmx650mm
Maximum Inspection Area	550mmx550mm
Image Geometric Magnification	2000X
Input Powe	220V 10A 50-60Hz
Operation System	PrecisionT7920 ImageWorkstation
Dimensions	L1600mm×W1700mm×H2000mm
Net Weight	About 2950 KG
