Name: Automatic Optical Inspection Equipment High Precision OFF Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-A410
Price: 16000 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-A410

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: USD 16000

Packaging Details: Plywooden case

Delivery Time: 7days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10 sets/ month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                OFF Line Automatic Optical Inspection Equipment, High Precision Automatic Optical Inspection Equipment


Camera:	Color Camera:20μm(15μm For Optical)	Lamp-house:	Ring RGB LED Flash Lamp-house
Anti Static Measures:	Anti-static Electric Outlet,anti-static Wreath	PCB Size:	25×25mm - 480×330mm Can Customized Size
PCB Warp Tolerance:	±2mm

Camera:	Color Camera:20μm(15μm For Optical)
Lamp-house:	Ring RGB LED Flash Lamp-house
Anti Static Measures:	Anti-static Electric Outlet,anti-static Wreath
PCB Size:	25×25mm - 480×330mm Can Customized Size
PCB Warp Tolerance:	±2mm

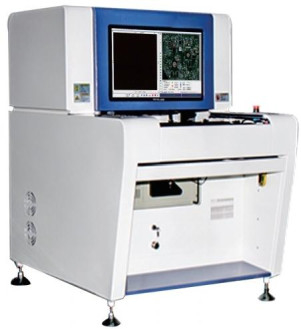

Automatic Optical Inspection Equipment High Precision OFF Line

YSL-A410 Automatic Optical Inspection Equipment High Precision Online AOI

PRODUCT FEATURES

● Economical and practical AOI

● High precision detection platform design

● Fast programming debugging integration

● Automatic recognize the Top and Bottom side

● Professional SPC system

TECHNICAL PARAMETER
CATEGORY	ITEM		SPECIFICATION
Recognition System	Inspection		Using mutiple algorithmssynthetically such asWDM,Color Image contrast technoloqy,Color extracting technoloqy similarity two-value handling technology,OCR/OCVand so on
	Camera		Color camera:20μm(15μm for Optical)
	Lamp-house		Ring RGB LED flash lamp-house
	lmage Processing Speed	0201 Chip	<10ms
		Per-Image Time	<170ms
	Inspection Items	Paste Printig Defects	Msaligned,overflow,insuffcient,pasting open,stain
		Componet Defects	Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity wrong,damaged
		SolderDefects	Overflow,insufficient,short solder,stain
	Anti Static Measures		Anti-static electric outlet,anti-static wreath
Mechanism System	PCB Size		25*25mm - 480×330mm,Can customized size
	pCBThicknes		0.5mm-5.0mm
	PCB Warp Tolerance		±2mm
	Component Clearance		TOP<28mm,BOT<75mm
	Minimum Space Parts		0201 chip(15μm)
	X,YPlatform	Driver	AC servosystem
		Accurate positioning	<10μm
		Moving Speed	700mm/s
Soft System	Operation System		Microsoft Windows 7

	Controlling Recognizing	Characteristics	WDM,study OKtemplate,automatically set template imaging,identify data and error numerical value
		Operation	Graphic programming,take along with chip library and get aninspection fame accordingwithchip shape,aureate postion,micron aajust,and easyprogramming
	Mark	MarkNumbers	0-2marks can be chosen
		Recognizing Speed	0.5s/pCs
Controller	Computer		CPU:Intel dual-core,Memory:4G,Hard disk:1T
	Display		222-inch TFT
Others	Machine Dimensions(L×WxH)		868×1033×1340mm
	Weight		~310kg
	PowerSupply		AC220V±10%,single phase 50/60HZ,power consumption 600W
	Working Enyironment		Temperature10-40℃,humidity 30-80%RH
