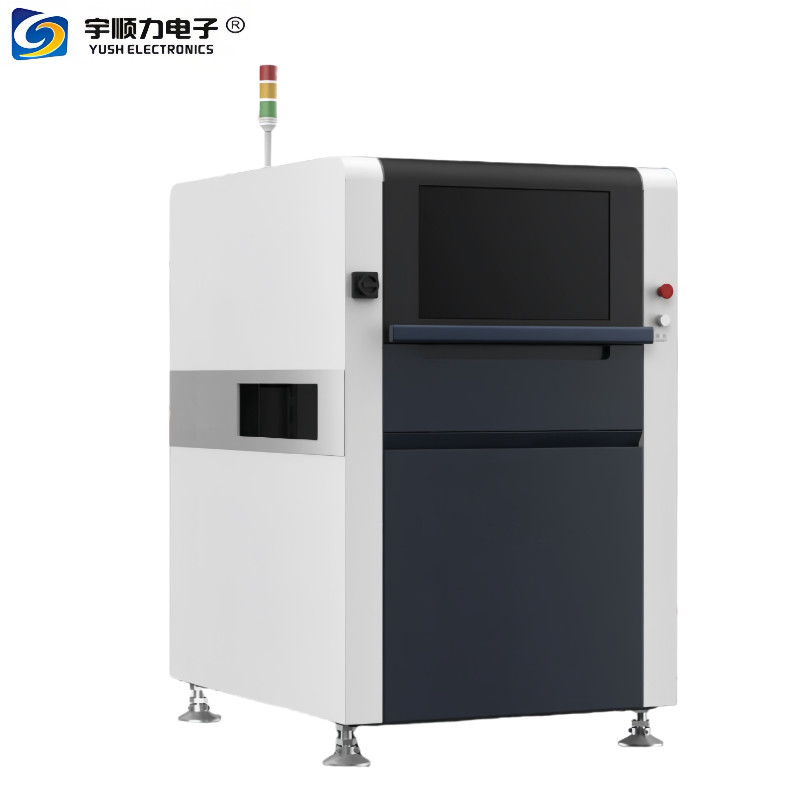

Automatic Optical Inspection Equipment DIP On Line Dual Side Online AOI
Introduce of DIP On-line Dual Side Online AOI
YUSH DIP dual side AOI captures board image in real time by high precision color industrial camera. Adopt Convolutional Neural Network (CNN) algorithm to process images. Judge defects of components intelligently.
Features:
1. On-line DIP dual side AOI for plug-in after soldering.
2.High inspection rate and low false alarm rate, automatically check color ring resistor, capacitor, diode, socket, etc..
3. Defect type:wrong part, missing part, reverse polarity and other defects of DIP element.
4.Spanning erection without change of production line.
5.Simplified programming flow, very simple interface. Support batch modifying parameters with one-key.
6.Centralized control. Interconnection between multiple equipment.
7.Real-time inspection without stopping the board.
8.Easy to move, adjustable height and width.
9.Locate defects quickly and can control production line.
10.PCBA dimensions: Maximum 400*300mm (12MP) / Maximum 520*380mm (31MP) Multiple selectable options.
11.Data is traceable. Support SPC alarm,LOG automatic collecting and storage function,NG warning/alarm function, Remote programming&debugging
| Model |
AOI AI-5146W (After THT Soldering) |
AOI AI-5146WL (After THT Soldering) |
| FOV |
52.6*44mm |
| Resolution |
21.5um |
| Camera |
5M |
| Inspection Speed |
0.23sec/FOV |
| PCB Height |
Top:75mm, Bottom:75mm |
| PCB Thickness |
0.3 ~ 6.0mm |
| PCB Edge |
3.0mm |
| Power |
AC220 50/60Hz,5A |
| Communication |
SMEMA |
| Weight |
890Kg |
1000Kg |
| Dimension |
L1050*W1335*H1650mm |
L1050*W1335*H1650m |
