Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L

Product Details

Place of Origin: JiangSu

Brand Name: YUSH

Certification: CE Mark

Model Number: YSL-600H

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: business negotiation

Packaging Details: wooden package

Delivery Time: 3 days to 7 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 25 Set/Sets per Month

Get Best Price
High Light:

SMT Steel Mesh Cleaning Machine

,

Microporous Mesh Cleaning Machine

,

40L PCB Cleaning Machine

Optimum Liquid Usage:
40L
Maximum Volume Of Tank:
50L
Overall Dimensions:
L1000*W700*H1730(mm)
Cleaning Time:
2-4min
Exhaust Port Size:
Φ125×H25(mm)
Machine Weight:
240KG
Optimum Liquid Usage:
40L
Maximum Volume Of Tank:
50L
Overall Dimensions:
L1000*W700*H1730(mm)
Cleaning Time:
2-4min
Exhaust Port Size:
Φ125×H25(mm)
Machine Weight:
240KG

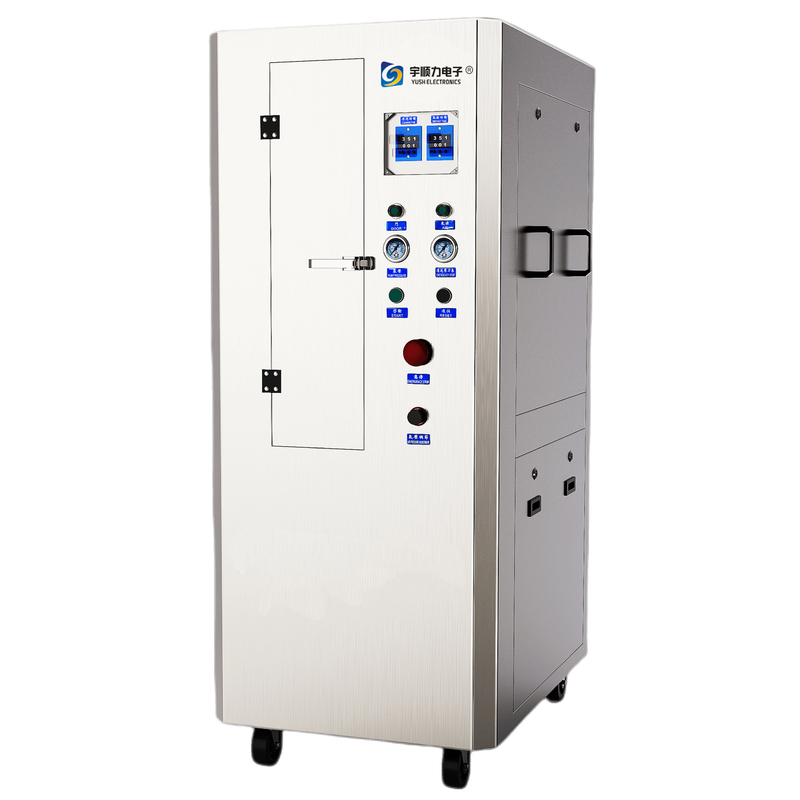

Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L

Full Pneumatic Steel Mesh Cleaning Machine

Equipment overview: for the electronic industry SMT steel mesh, copper mesh, wire mesh, microporous mesh and crystal disk and other types of screen cleaning;

The equipment completely uses compressed air as energy, does not use electricity, does not exist any fire hazard, adopts the humanized design, one-button operation, easy to complete the cleaning, drying work; Is a high performance pneumatic automatic cleaning equipment from cleaning to drying process, using air pressure automatic operation; The cleaning fluid is recycled, low loss;



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 0



Application field



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 1



Cleaning object



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 2



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 3



Cleaning process cycle diagram



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 4



Schematic diagram of the principle of steel net drying



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 5



    1.Side wall intake blow dry                      2.Separate air and liquid passages



Product structure and function



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 6



Suitable for steel mesh size L750 × W750 × H40(mm) 【Extra large size to order】
Overall dimensions L1000*W700*H1730(mm)
Maximum volume of tank 50L
Optimum liquid usage 40L
Cleaning method 360°Rotary double side isobaric injection High pressure injection (cleaning + blow drying)
Cleaning time 2-4min
The drying time 2-5min
An external gas source 0.4~ 0.6 (Mpa)
Gas consumption 400 ~600( L/Min)
Exhaust port size Φ125×H25(mm)
Filtration system (Level 1) Primary filter element filtration: 10 µM (to filter impurities and labels)
Filtration System (Level 2) Secondary filter element filtration: 5 parts (to filter solder paste and rosin particles)
Filtration system (level 3) Three-stage filter element filtration: 1 rod (to filter solder paste and rosin particles)
Machine weight 240KG



Related parameters of the three-stage filter system



Project Filter Brand Filter element replacement cycle
Level 1 10μm Impurities/Labels HDX 12 Months
Level 2 5μm Tin ball/rosin pellet HDX 12 Months
Level 3 1μm Solder paste/rosin particles HDX 12 Months



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 7



Project Parameter
Cleaning fluid Alcohols, water - based solvents are suitable
Applicable to screen size ≤A 29-inch screen can be cleaned
Cleaning time 3-5 minutes
The drying time 3-5 minutes
Consumption of cleaning fluid 120ml/Pcs



The product features

1. All stainless steel body: beautiful, wear resistance, corrosion resistance, in line with environmental requirements and standards;

2. Full pneumatic operation, no electricity, no fire and other safety hazards;

3. Side wall inlet and blow-drying design;

4. Humanized design: one-click operation and automatic draining function, the operation is very simple;

5. Replaceable modular controller and quick plug design, maintenance is also very simple and convenient;

6. Two-stage filtration system, low exhaust outlet and S-type exhaust pipe design: solvent circulation, low liquid consumption;

7. High density isobaric bilateral rotating cleaning nozzle, strong cleaning force, does not destroy the tension of steel mesh.

8. Systematic integration of global quality control devices, to ensure good quality, stable performance, long service life;



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 8



Maintenance and Maintenance

Replaceable modular controller and quick plug design, easy and convenient maintenance

1.Automatic filling and draining

2.Controller Maintenance



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 9



Replace the filter element:

1. Open the bin door at the lower right of the device, remove the filter cartridge with a wrench and take out the built-in old filter element, and install the new filter element after cleaning. Note: When replacing the filter element, it is necessary to wear industrial rubber gloves to drain the liquid in all pipes, liquid storage tanks and filters inside the equipment. So as not to pollute the newly replaced filter element, and not to achieve a good filtration effect.

2. Use a special wrench to open it

3. Remove the filter cartridge clockwise to tighten and counterclockwise to loosen. After replacing the new filter element, install and tighten it. Then start the machine and check the filter for liquid leakage. If yes, tighten it again until there is no leakage



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 10



Tank cleaning

1. Clean the filter box and replace the filter screen

2. Open the bin door at the lower right of the device and unscrew the cover of the liquid storage tank. There is a filter inside the liquid storage tank. Remove the filter bag, clean the filter bag inside and the debris at the bottom with the cleaning solution (when changing different cleaning solution, take out the filter bag, take out the filter bag and rinse it with water before use), and then put it back in the original position. Finally, install the liquid storage tank cover and close the door. As shown in figure:



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 11



Clean the instance



Full Pneumatic SMT Steel Mesh Cleaning Machine Maximum volume tank 50L 12



Comparison of Cleaning Examples
