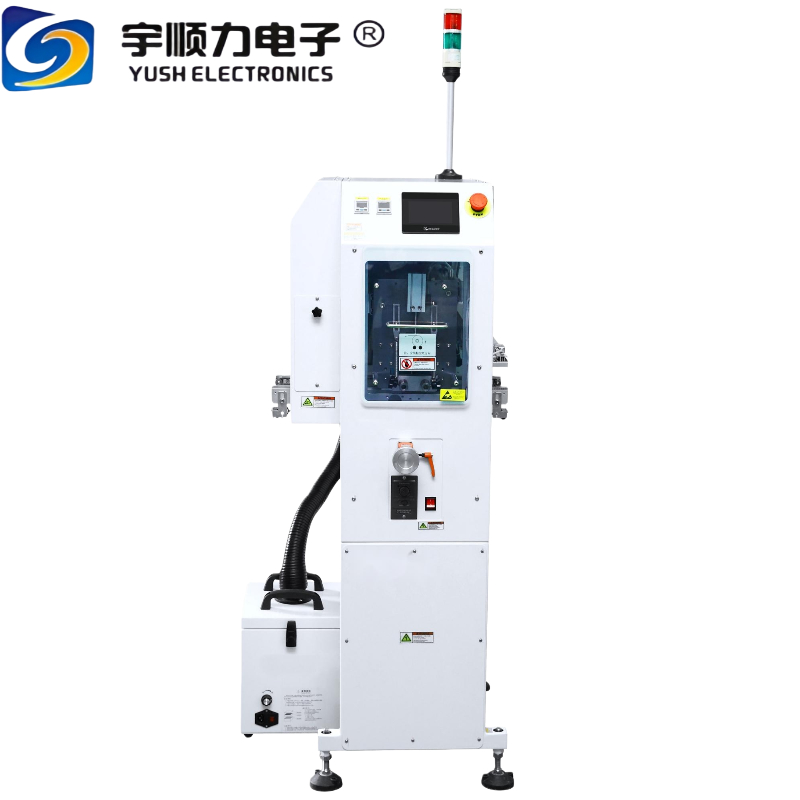

Automatic Touch Screen Control PCB Cleaning Machine
Automatic Touch Screen Control PCB Cleaning Machine

Automatic Touch Screen Control PCB Cleaning Machine

Product Details

Place of Origin: China,Guangdong

Brand Name: YUSH

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD5800

Packaging Details: wooden case

Payment Terms: L/C, D/A, D/P, T/T

Get Best Price

Product Details

Product Description
Highlight:

touch screen PCB cleaning machine

,

automatic PCB cleaning equipment

,

PCB cleaning machine with touch control

Automatic Touch Screen Control PCB Cleaning Machine
Automatic Touch Screen Control PCB Cleaning Machine
Product Description

The Automatic Touch Screen Control PCB Cleaning Machine is designed to remove foreign objects from PCB surfaces while eliminating static electricity.

Automatic Touch Screen Control PCB Cleaning Machine 0
Features
  • Real-Time Electrostatic Monitoring System
  • The system could save 30 days' monitoring data
  • User friendly touch screen control panel
  • Keyence Ionizer to remove static electricity
  • Pull-out design for cleaning machine
  • Conveyor height 950±30mm
  • SMEMA compatible
  • Two types on request: single side or double side
Options
  • External brush with vacuum to absorb out dust
  • Additional ionizers for better static elimination
  • Automatic width adjustment
  • Safety interlocker
Automatic Touch Screen Control PCB Cleaning Machine 1 Automatic Touch Screen Control PCB Cleaning Machine 2
Technical Parameters

This unit is used to remove the foreign objects from the PCB surface. It can also eliminate the static electricity on of PCB.

Description This unit is used to remove the foreign objects from the PCB surface. It can also eliminate the static electricity on of PCB
Belt Type Antistatic Flat Belt of 8mm width
Cycle Time Approx. 8 seconds
PCB Thickness 0.6-4mm
Conveyor Speed 0.5-20m/min or specify
Power Source AC 220V, 50/60Hz, 1 phase
Power Consumption 150W Max
Air Pressure & Consume 4-6 bar, 10 l/min Max.
Specification Units in mm
type Single Side
Machine Dimensions(LxWxH) 650x976x1380
Effective PCB Size (LxW) 80x80 - 530x460
Weight (Kg) 200
