Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE Mark
Model Number: YS-900
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: business negotiation
Packaging Details: wooden package
Delivery Time: 3 days to 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25 Set/Sets per Month
Maximum Board Size: |
900*350mm |
Minimum Board Size: |
80*50mm |
Board Thickness: |
0.8*6mm |
Maximum Board Weight: |
10KG |
Board Edge Clearance: |
3.5mm |
Applicable For: |
FPC And Other Types PCB |
Maximum Board Size: |
900*350mm |
Minimum Board Size: |
80*50mm |
Board Thickness: |
0.8*6mm |
Maximum Board Weight: |
10KG |
Board Edge Clearance: |
3.5mm |
Applicable For: |
FPC And Other Types PCB |
Image and optical system
Using uniform ring light and high brightness coaxial light ,with promise brightness adjustment function,then all types of Mark points can be well recognized (Including the rugged Mark points),applicable for tin plating, coppering ,gold plating,tin spraying,FPC and other types PCB with of different colors.With YUSH patent mathematical model,able to ensure high accuracy.

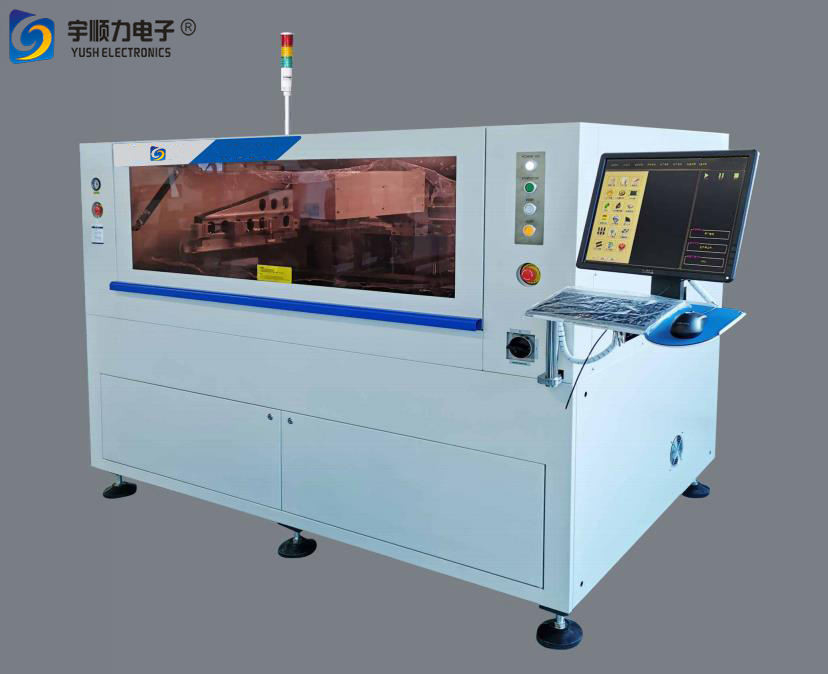

Chinese /English Operating Interface
The machine adopts windows XP/win 7 operating interface with YUSH user friendly software.Chinese/English selectable,Menu/Operating Journal/Breakdown Record /Breakdown Diagnosis/Error Analysis/Light Alarm etc.
2D Solder paste Print Quality Inspection and Analysis System
The 2D system immediately deteces solder paste deposition defeces such as deviation,lack paste,miss paste,paste joint etc,and guarantees print quality.
Adjustable Stepping Motor-Programmable Floating Print-heads
Unique long platform and track fixed design, to ensure stable support PCB.Short squeegee horizontal priniting,pressure stability ,save solder paste.
Electric Control System
Safe and tidy distribution of electric circuit and gas circuit Electric circuit and gas path are positioned vertically at the two sides and the back of machine,which is easy to check and repair.
Specifications:
| Substrate processing | |
| Maximum board size | 900*350mm |
| Minimum board size | 80*50mm |
| Board thickness | 0.8*6mm |
| Maximum board weight | 10KG |
| Board edge clearance | 3.5mm |
| Board height | 15mm |
| Transport height | 900±40mm |
| Transport speed | 1500mm/s(MAX) |
| Transport direction | One stage |
| Board clamp | Patented over the top clamping/ Side Clamping |
| Support System | Magnetic Pin /Support Block/Automatic UP-Down table |
| Vision | |
| CCD FOV | 10*8mm |
| Fiducial mark types | Standard Fiducial mark shape /Pad /Hole |
| Camera System | Look uo/down optics structure |
| CCD digital camera | |
| Geometry pattern match | |
| Machine Performance | |
| Repeat Position Accuracy | ±0.015mm |
| Print Accuracy | ±0.03mm |
| Based on the third party test system(CTQ)Verify the actual solder paste printing position repeat precision | |
| Cycle time | <15sec |
