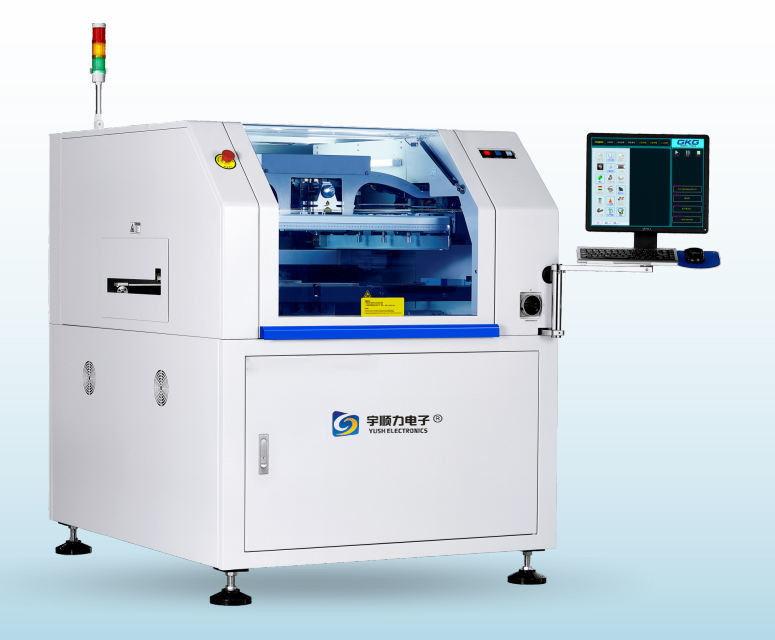

Product Details
Place of Origin: JiangSu
Brand Name: YUSH
Certification: CE Mark
Model Number: YS-G5
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: business negotiation
Packaging Details: wooden package
Delivery Time: 3 days to 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 25 Set/Sets per Month
Cleaning Speed: |
10-200mm/sec |
CCD FOV: |
10*8mm |
Camera Cycle Time: |
300ms |
Mark Size: |
0.5-5mm |
Machine Weight Approx: |
900KG |
Electrostatic Protection: |
ESD Grounding And Electrostatic Protection Are Required |
Cleaning Speed: |
10-200mm/sec |
CCD FOV: |
10*8mm |
Camera Cycle Time: |
300ms |
Mark Size: |
0.5-5mm |
Machine Weight Approx: |
900KG |
Electrostatic Protection: |
ESD Grounding And Electrostatic Protection Are Required |
| Machine Performance | |
| Repeat Position Accuracy | ±0.01mm |
| Print Accuracy | ±0.025mm |
| NCP-CT | 7.5s |
| HCP-CT | 19s/pcs |
| Process CT | 5min |
| Transfer line CT | 3min |
| Substrate processing parameter | |
| Max9∶27imum board size | 400*340mm Scalable:530*340mm(Options) |
| Minimum board size | 50*50mm |
| Board thickness | 0.4-6mm |
| Camera Mechanical range | 528*340mm |
| Maximum board weight | 3kg |
| Board edge clearance | 2.5mm |
| Board height | 15mm |
| Transport speed | 900±40mm |
| (Max)Transport speed | Segment control 1500mm/s(Max) |
| Transport direction | One-section transport rail |
| Transmission direction | Left to right |
| Right to Left | |
| In and out the same | |
| Support System | Magnetic Pin |
| Support Block | |
| Manual Up-down table | |
| Board clamp | Automatic top clamping |
| Side clamping | |
| Adsorption function | |
| Printing Parameters | |
| Print Speed | 10~200mm/sec |
| Print Pressure | 0.5~10Kg |
| Print Mode | Single or double doctor blade printing |
| Queegee Type | (09/s5/st alfue) apels apels ofoonbs/mand (09/ss/stalle) Chiell/Dievilievi |
| Snap-off | 0~20mm |
| Snap-Speed | 0~20mm/sec |
| The template frame size | 470*370mm~737*737mm(Thickness∶20-40mm) |
| Steel mesh positioning method | Automatic Y-direction positioning (compatible with manual compensation adjustment) |
| Cleaning Parameters | |
| Cleaning System | Dry, Wet Vacuum three modes |
| Cleaning system | Up Drip type |
| Cleaning stroke | Automatic generation |
| Cleaning position | Post cleaning |
| Cleaning Speed | 10-200mm/sec |
| Cleaning fluid consumption | Auto & Manually adjustable |
| Cleaning paper consumption | Auto & Manually adjustable |
| Vision Parameters | |
| CCD FOV | 10*8mm |
| Camera type | 130 Thousand CCD Digital camera |
| Camera System | Lock up/down optics structure |
| Camera Cycle time | 300ms |
| Fiducial mark types | Standard Fiducial Mark Shape |
| Round,square,diamond,cross | |
| Pad and profile | |
| Mark size | 0.5-5mm |
| Mark number | Max:4pcs |
| Stay away number | Max: 1pcs |
| Smart equipment | |
| safely control | Door open to stop, abnormal alarm |
| 2D inspection | Detection of less tin/missing print/continuous tin |
| Automatic crimping | Automatically push up the guide rail |
| Vacuum adsorption | Platform vacuum adsorption |
| Machine parameter | |
| Power Source | AC:220±10%,50/60Hz2.2KW |
| Air Pressure | 4~6Kgf/cm² |
| Air Consumption | About 5L/min |
| Operating Temperature | -20℃~+45℃ |
| Working environment humidity | 30%~60% |
| Machine dimension (without Tower light) | 1404(H)mm |
| Machine Length | 1140(L)mm |
| Machine Width | 1364(W)mm |
| Machine Weight Approx | Approx∶About900Kg |
| Equipment load bearing requirements | 650Kg/㎡ |
