Product Details
Place of Origin: China
Brand Name: YUSH
Model Number: YSL-1200D
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD10000-12000
Packaging Details: plywooden case
Delivery Time: 6-7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50Sets/Month
Product Size: |
1200*1300*1700mm |
Cable Length: |
8m |
Noise Level: |
74dB |
Filtering Accuracy: |
0.3μm |
Feature: |
Brushless Fan Is Adopted |
Power: |
2.2Kw |
Product Size: |
1200*1300*1700mm |
Cable Length: |
8m |
Noise Level: |
74dB |
Filtering Accuracy: |
0.3μm |
Feature: |
Brushless Fan Is Adopted |
Power: |
2.2Kw |

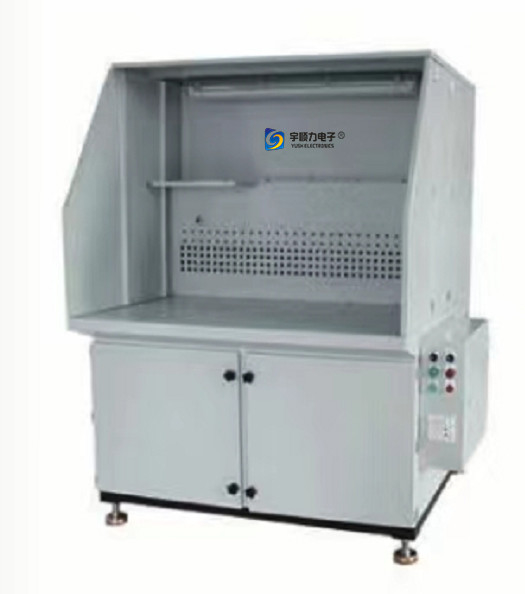

Grinding And Dust Removal Workbench
Scope of application:
It is suitable for places with large and concentrated dust such as hardware grinding, Dali grinding, wood polishing, and auto parts grinding and polishing.
Main feature:
1. The brushless fan is adopted, with large air volume and low noise.
2. Pulse automatic blowing system can effectively clean the high-efficiency filter
3.16 square meters/32 square meters of filter area, filters with different performances can be selected according to the needs of the working conditions.
4. Dust shields and fire nets can effectively block grinding sparks and dust.
5. The honeycomb dust removal table can effectively clean the light floating and sinking caused by grinding.
6. Adjustable foot pads can adjust the height of the work surface according to the site conditions.
7. The switchable movable baffles on both sides have strong flexibility and can effectively prevent the overflow of fine dust.
8. The installation method of the rotary card filter is simple and convenient without tools for disassembly.
9.2.0 A series of treatments such as thickening sheet metal, drenching, high temperature baking paint, etc., the product will not peel off paint or rust.
Cartridge filter / Schneider Electric
Fire net/dust shield Both sides can open and close the shutter
| Technical Data | Unit | YSL-1200D | YSL-1600D | YSL-2000D |
| Power | Kw | 2.2 | 3 | 4 |
| Voltage | V-Hz | 380-50/60 | 380-50/60 | 380-50/60 |
| Container capacity | L | 60 | 60 | 60 |
| Filter area | ㎡ | 16 | 32 | 32 |
| Filtering accuracy | μm | 0.3 | 0.3 | 0.3 |
| Qty of filters | PC | 2 | 4 | 4 |
| Airflow | m³/h | 2000-3000 | 3000-4500 | 4000-5000 |
| Vacuum | Kpa | 1.6-1.0 | 2.0-1.2 | 2.2-1.6 |
| Noise level | dB | 74 | 75 | 76 |
| Cable length | m | 8 | 8 | 8 |
| Product size | mm | 1200*1300*1700 | 1600*1350*1700 | 2000*1350*1700 |
| Filter cleaning method | - | Pulse cleaning | Pulse cleaning | Pulse cleaning |
| Explosion proof or not | - | No | No | |
