Product Details
Place of Origin: China
Brand Name: YUSH
Model Number: YSL-550E
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD18000-20000
Packaging Details: plywooden case
Delivery Time: 6-7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50Sets/Month
Product Size: |
1250*1280*2600 |
Cable Length: |
8m |
Inlet Diameter: |
150/500mm |
Noise Level: |
72dB |
Filtering Accuracy: |
0.1-0.3μm |
Airflow: |
4000-5700m³/h |
Product Size: |
1250*1280*2600 |
Cable Length: |
8m |
Inlet Diameter: |
150/500mm |
Noise Level: |
72dB |
Filtering Accuracy: |
0.1-0.3μm |
Airflow: |
4000-5700m³/h |

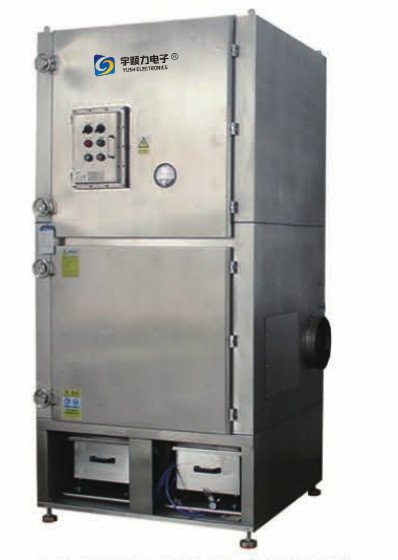

Series With Single Door Panels Explosion Proof Device
Scope of application:
welding robot workstation smoke and dust control, laser cutting, drilling, sandblasting, powder spraying, engraving, grinding and polishing, stirring, powder feeding, powder bagging, powder sieving, laboratories, etc. It can be placed indoors or outdoors to collect and control floating, suspended dust and smoke, and can be centralized for single-post or multi-post dust removal.
Main feature:
1. The explosion-proof device of the whole machine is suitable for places with explosion-proof requirements.
2. Explosion-proof centrifugal fan, large air volume, low noise and stable performance.
3. Equipped with 15 electrostatic conductive filter cartridges, the filtration area is 72 square meters.
4. The pulse cleaning control system can set the pulse cleaning interval according to the working conditions.
5. Stainless steel material, explosion-proof electrical appliances, explosion-proof electric box, flameless discharge/explosive disc, improve product safety.
6. Differential pressure gauge can check the pressure when the machine is running.
7. The filter wind speed reduction design inside the machine, dust can be formed inside the machine after dust inhalation.
Explosion-proof motors / 15 static conductive filter cartridges 72 square meters
Buster/Flameless Vent Explosion-proof electrical box
| Technical Data | Unit | YSL-550E | YSL-750E |
| Power | Kw | 5.5 | 7.5 |
| Voltage | V-Hz | 380-50/60 | 380-50/60 |
| Container capacity | L | 50 | 50 |
| Filter area | ㎡ | 72 | 72 |
| Filtering accuracy | μm | 0.1-0.3 | 0.1-0.3 |
| Qty of filters | PC | 15 | 15 |
| Airflow | m³/h | 4000-5700 | 5000-7000 |
| Vacuum | Kpa | 2.9-2.1 | 3.3-2.5 |
| Noise level | dB | 72 | 74 |
| Inlet diameter | mm | 150/500 | 150/500 |
| Cable length | m | 8 | 8 |
| Product size | mm | 1250*1280*2600 | 1250*1280*2600 |
| Filter cleaning method | - | Pulse cleaning | Pulse cleaning |
| Explosion proof or not | - | YES | YES |
| Switch control mode | - | Local control | |
