PLC Intelligent Module Dust Removal Equipment With Purification

Product Details

Place of Origin: China

Brand Name: YUSH

Model Number: YSL-1100

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD10000-13000

Packaging Details: plywooden case

Delivery Time: 6-7Days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50Sets/Month

Get Best Price
High Light:

Rotary Backflushing Dust Removal Equipment

,

PLC Intelligent Module Dust Removal Equipment

,

PLC Module Industrial Dust Removal Machine

Product Size:
1520*1500*3250mm
Cable Length:
10m
Inlet Diameter:
500mm
Noise Level:
74dB
Filtering Accuracy:
0.1-0.3μm
Feature:
PLC Intelligent Module
Product Size:
1520*1500*3250mm
Cable Length:
10m
Inlet Diameter:
500mm
Noise Level:
74dB
Filtering Accuracy:
0.1-0.3μm
Feature:
PLC Intelligent Module

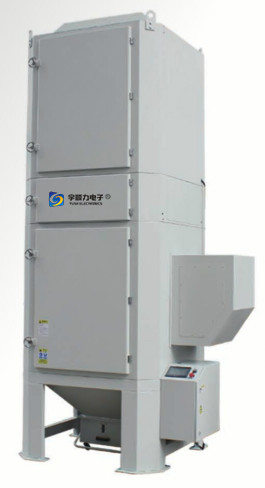

PLC Intelligent Module Dust Removal Equipment With Purification

Dust removal and purification equipment

Scope of application:

Welding robot workstation fume control, large welding workshop fume purification, heavy machinery welding dust removal, cutting, drilling, sandblasting, powder spraying, engraving, grinding and polishing, stirring, powder feeding, powder bagging, powder screening, laboratories, etc. Conditions where the amount of dust and smoke is very large. It can be placed indoors or outdoors to collect and treat floating, suspended dust and soot, which can purify the overall soot in the workshop.


PLC Intelligent Module Dust Removal Equipment With Purification 0



Main feature;

1. Adopt Siemens centrifugal fan and modular design, with large air volume, low noise and stable performance.

2. Schneider brand electrical appliances to improve product safety and stability.

3. Rotary backflushing and cleaning system, the interval time of backflushing and cleaning can be set according to the working conditions.

4. Increase the filter area to meet the needs of the machine working for a long time.

5. PLC intelligent module, remote control and constant voltage control module can be installed. The fan speed can be automatically adjusted according to the concentration of smoke and dust at different locations in the workshop to reduce energy consumption.

6. The whole machine can be customized as explosion-proof type in special places.

7. The filter wind speed is designed to reduce the speed inside the machine, and dust can be formed inside the machine after the dust is inhaled.


PLC Intelligent Module Dust Removal Equipment With Purification 1

              Siemens motor                               Cartridge filter                                     PLC control



PLC Intelligent Module Dust Removal Equipment With Purification 2
