Product Name: |
Solder Paste Screen Printer,pcb Printing Machine |
Name: |
Full Automatic SMT Stencil Printer/ PCB Screen Printing Machine |
Max Board Size: |
450mm X 350mm |
Min Board Size: |
50mm X 50mm |
PCB Thickness: |
0.4mm~6mm |
Max Board Weight: |
6Kg |
Usage: |
Paper Printer,Card Printer,PCB,Label Printer |
Condition: |
New |
Automatic Grade: |
Automatic |
Plate Type: |
Screen Printer |
Warranty: |
1 Year |
Product Name: |
Solder Paste Screen Printer,pcb Printing Machine |
Name: |
Full Automatic SMT Stencil Printer/ PCB Screen Printing Machine |

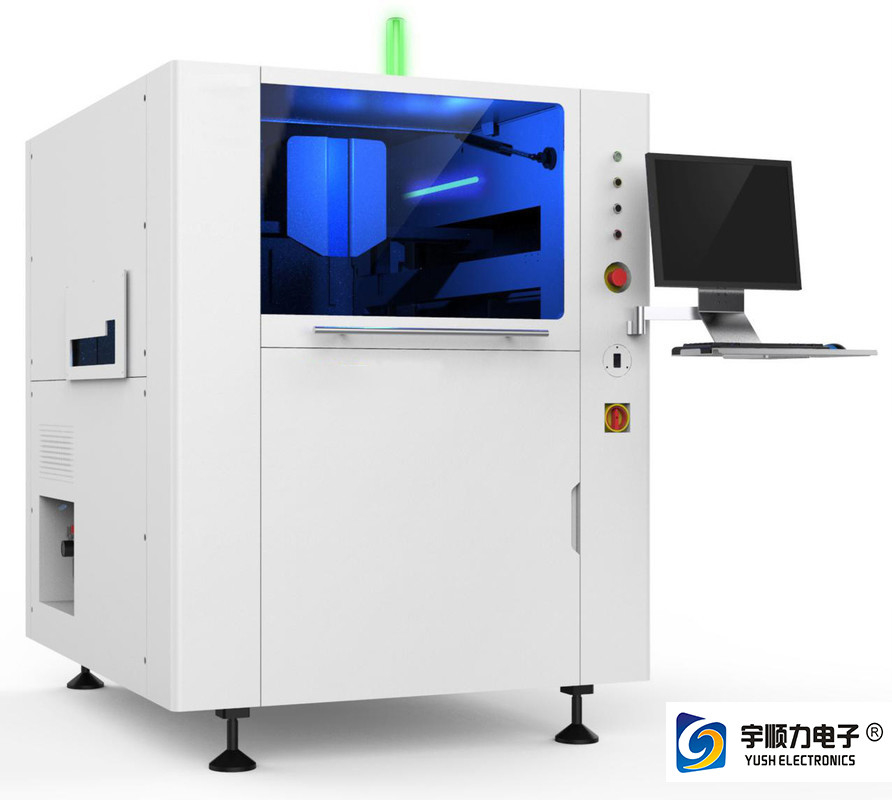

0.4mm~6mm High Accuracy Full Automatic SMT Stencil Printer/ PCB Screen Printing Machine
Specs:
| PCB parameters | |
| Max board size | 450mm x 350mm |
| Min board size | 50mm x 50mm |
| PCB thickness | 0.4mm~6mm |
| Warpage | Max. PCB diagonal 1% |
| Max board weight | 6Kg |
| Board edge spacing | configuration to 3mm |
| Max bottom spacing | 20mm |
| Transmission speed | 1500mm/s(Max) |
| Transmission height to the land | 900±40mm |
| Transmission direction | Left-Right, Right-Left, Left-Left, Right-Right |
| Transmission method | One-stage transmission rail |
| PCB pick-up method | Software can change the elastic lateral pressure(Optional: multipoint on the bottom or partial vacuum or whole vacuum). |
| Board supporting method | Magnetic thimble, contour blocks, special workpiece fixture |
| Printing parameters | |
| Printing head | Two independent straight league motor drives |
| Template frame size | 370mm x 470mm(470 left/right placed)~737 mm x 737 mm |
| Max printing area | 450mm x 350mm |
| Scraper type | Stencil scraper/rubber scraper(angle 45°/55°/60° select according to the printing technology) |
| Printing mode | Single or two scrapers printing |
| Demoulding length | 0.02 mm to 12 mm |
| Printing speed | 6 mm/s to 200 mm/s |
| Printing pressure | 0.5kg to 10Kg |
| Printing movement | ±250 mm (from the center) |
| Image parameters | |
| Field of view(FOV) | 6.4mm x 4.8mm |
| Table adjustable area | X,Y:±7.0mm θ:±2.0° |
| Reference point type | Standard reference point(see SMEMA standard),bonding pad/hole |
| Camera system | Individual camera, Up/down individual imaging visual system, geometric matching positioning |
| Performance parameters | |
| Imaging alignment repeated accuracy | ±12.5μ(±0.0005") @6 σ,Cpk≥2.0 |
| Printing repeated accuracy | ±25μ(±0.001") @6 σ,Cpk ≥ 2.0 |
| Cycle time | Less than 7.5s |
| Replace line time | Less than 5mins |
| Equipment | |
| Power | AC220V±10%,50/60HZ,15A |
| Compressed air | 4~6Kg/cm2, 10.0 tube |
| Operation system | Windows XP |
| Equipment size | 1140mm(L) x 1400mm(W) x 1480mm(H)( Do not include the screen and tri-color light height) |
| Equipment weight | About 1000kg |
