Product Details
Place of Origin: China Dongguan
Brand Name: YUSHUNLI
Certification: CE
Model Number: YSVC-3S
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD1000~4000
Packaging Details: plywooden case
Delivery Time: 5-7work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200Sets/Month
Model: |
YSVC-3S With 2.4M Platform |
Dimension: |
880*420*320mm（L*W*H) |
Suitable PCB Length: |
No Limited |
Cutting Speed: |
300~500mm/s |
Cutting Thickness: |
0.6-5.0mm |
Voltage: |
220 V/50HZ Or 110V |
Max Component Height: |
20 Mm |
Machine Weight: |
52kg |
Model: |
YSVC-3S With 2.4M Platform |
Dimension: |
880*420*320mm（L*W*H) |
Suitable PCB Length: |
No Limited |
Cutting Speed: |
300~500mm/s |
Cutting Thickness: |
0.6-5.0mm |
Voltage: |
220 V/50HZ Or 110V |
Max Component Height: |
20 Mm |
Machine Weight: |
52kg |

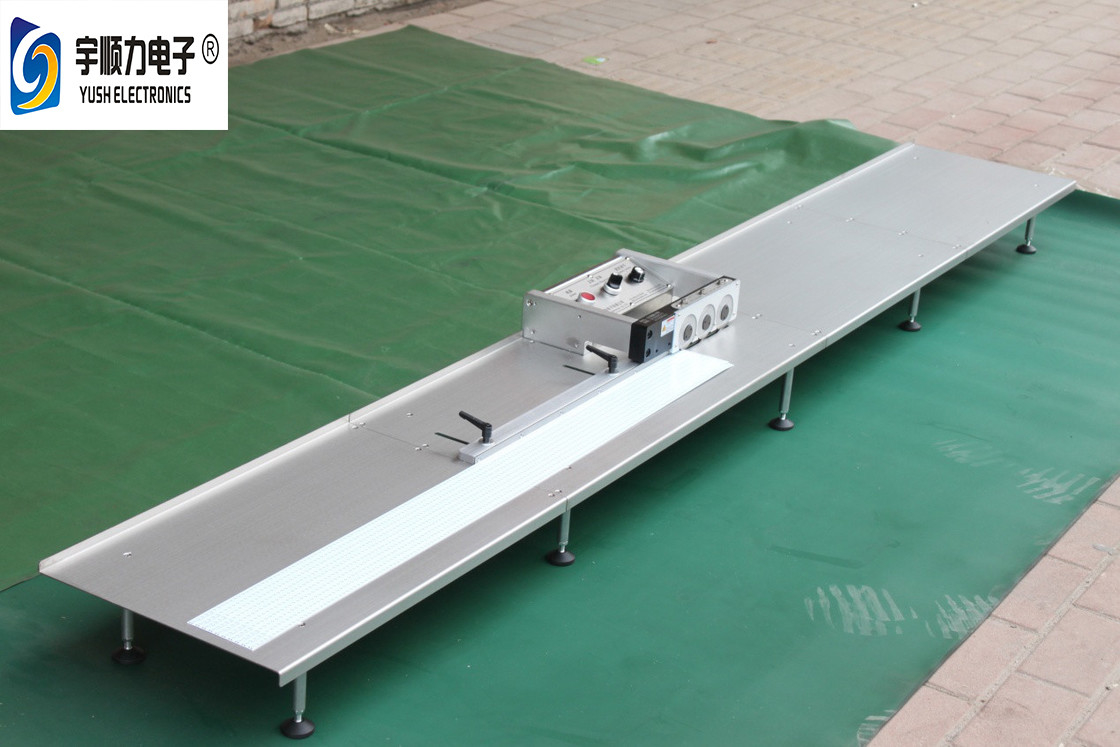

300~500mm/S 220 V/50HZ Or 110V LED Cutting Machine YSVC-3S With 2.4M Platform
Features
1. With unique cutting method , the circuit board is cut by six blades . It is a group composed of one upper and one lower blade , and is also a cutting unit. There are A, B, C, three groups. The whole cutting process is divided into three stages from group A blade which cut 40% board then to the group B blade knife cut through groove cutting by group A to complete another 40% .the last 20% is cut by group C blade and finishing. because each cutting volume is small, the stress produced during the cutting progress declined by more than 80% compared with the traditional cut off at a time.
Thus the edge of the board and its surface are very smooth without warping . Currently, it is the only machine that can guarantee the aluminum plate without deformation after cutting .
2. Because of the multiple cutting, cutting process is very smooth and greatly improves the capability of position of V-CUT groove .
Even if with shallow slot V-CUT groove the board won t jump out of blade, avoiding adverse.
3. Because cutting force of the blade is small. abd with high speed steel material which is imported from the Swedish. durability of the blade greatly improved , and the lifetime can be one year or more when cutting the aluminum board.
4. All the cutting blades are calibrated by Excitation double-frequency laser interference measurement instrument. Ensure that the latter knife can accurately continue to cut in the slots which already cut by the former knife.The jitter of knife point is less than 0.02mm. Ensure perfect cutting quality.
| YSVC-3S Specifications | |
| Model | YSVC-3S with 2.4M platform |
| Dimension | 880*420*320mm(L*W*H) |
| Suitable PCB Length | No limited |
| Cutting speed | 300~500mm/s. |
| Cutting thickness | 0.6-5.0mm |
| Minimum component distance from v-groove | 1mm |
| Voltage | 220 V/50HZ or 110V |
| Max component height | 20 mm |
| Machine weight | 52kg |
| Machine Warranty period | One year |
Machine installation drawing:
Machine video reference URL:
https://www.youtube.com/watch?v=Xp4jfzyj5Ow
https://www.youtube.com/watch?v=TwAdf7vFOF8
