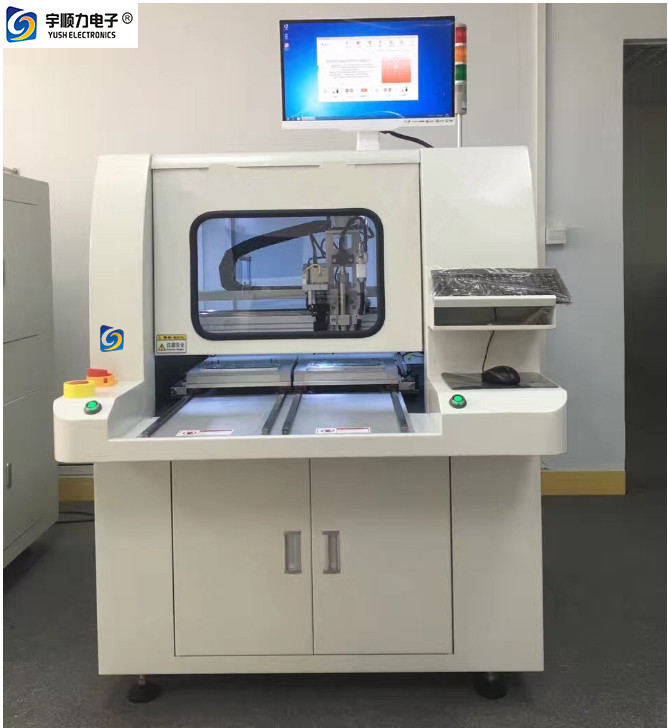

Off- Line PCB Router Depanleing Machine For Glass Epoxy , CEM1 , CEM3 , FR4
Features:
YSVC-650 series is a visual alignment automatic PCB router machine, equipped with high-speed CCD vision correction device, especially for precision and high-capacity PCB boards routing operations, suitable for mobile phones, GPS, PDA and MODULE and other small The PCB is divided into boards. Using NAKANISHI Japanese precision spindle ( Also can be selected according to customer requirements Germany KAVO spindle etc), Without cutting stress, Board edge after cut is smooth, with high precision.
A. Choose the order method to achieve automatic cutting
1. The cutting process is combined with the production model and quantity, according to the PMC plan to production;
2. To avoid the emergence of advanced production and production capacity is not clear;
3. To avoid modifications in the non-production process;
4. To achieve separation of people and machines.
B. Two-dimensional code automatically retrieves the program.
1. Through the rule of a two-dimensional code can be directly transferred to the program, convenient, simple, no error;
2. Product switching intelligent.
C. CCD scanning function.
1. Industry-leading PCBA full-board scanning function;
2. Reduce the programming time, cutting the path of real-time display, easy to modify simple.
D. Industrial 4.0-MES system
1. The server data is automatically retrieved;
2. upload machine data and production data;
3. Real-time detection of equipment status
Specification:
| YSVC-650 A | YSVC-650 B | YSVC-650C | |
| Type | Stand Alone | ||
| Pogram | Image Processing Software | ||
| Routing Area | 300 x 350 mm | 300 x 450 mm | 500 x450mm |
| Max PCB Thickness(Standard) | 2mm | ||
| Setting Fixture | 2 stations | ||
| Man-Machine Interface | Touchscreen Industrial Monitor + Keyboard + Mouse | ||
| PCB Loading/Unloading | Automatic | ||
| Max PCB Thickness(Option) | 6mm | ||
| PCB Material | Glass Epoxy,CEM1,CEM3,FR4 etc. | ||
| Router Bit Diameter | 0.8~3.0mm | ||
| Repeatability | ±0.01mm | ||
| Spindle Motor | Max 60,000 rpm | ||
| Door | Auto | ||
| Electrial Power | 3 phase AC 380V 50hz | ||
| Pneumatic | 0.5 MPa | ||
| Router Size(mm) | 1300*1100*1500mm | 1300*1350*1500mm | 1500*1350*1500mm |
| Weight | 800KG | 850KG | 900KG |
| Dust Collector Model | VF-30N | ||
| Type | Off- Line | ||
| Software version | Basic / Professional/ Customized | ||
| Cutting function | Linear, Circular, U-curve, Arc, L-curve | ||
| Visual system | Visual automatic positioning system | ||
| Cutting accuracy | ± 0.01mm | ||
| X, Y, Z axis drive mode | AC Servo motor | ||
| X, Y, Z axis drive mode | AC Servo motor |
| X, Y axis cutting speed | 0-100 mm/s |
| Operation and data | PC Systerm |
| Operation interface | Windows 7 |
| Voltage | 220 V 50HZ 1ψ |
| Power | 1500W |
| Dust Collector Voltage | 380V 50HZ 3ψ |
| Dust Collector Power | 2200w |
| Dust collection method | Down dust- collector (standard) or UP dust-collector (option) |
