Product Details
Place of Origin: China
Brand Name: YUSHUNLI
Certification: CE
Model Number: YSV-5A
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD 25800/SET
Packaging Details: plywooden case
Delivery Time: 5-7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100Set/Month
DimensionsL/W/H: |
1250(1560)mm×800mm×1295mm |
Blade Material: |
Imported High Quality High Speed Steel |
Board Width: |
Single Boards 12mm(Whole Board300mm) |
Drive System Motor: |
Stepper Motor / Servo (optional) |
Cutting Speed: |
300-500mm/s |
V-CUTthickness: |
One-third Thickness |
Working Pressure: |
0.5-0.8MPA |
Operating Voltage: |
220V/110V Optional |
Equipment Power: |
300KW(Except Vacuum Cleaner ) |
Machine Weight: |
300KG |
DimensionsL/W/H: |
1250(1560)mm×800mm×1295mm |
Blade Material: |
Imported High Quality High Speed Steel |
Board Width: |
Single Boards 12mm(Whole Board300mm) |
Drive System Motor: |
Stepper Motor / Servo (optional) |
Cutting Speed: |
300-500mm/s |
V-CUTthickness: |
One-third Thickness |
Working Pressure: |
0.5-0.8MPA |
Operating Voltage: |
220V/110V Optional |
Equipment Power: |
300KW(Except Vacuum Cleaner ) |
Machine Weight: |
300KG |

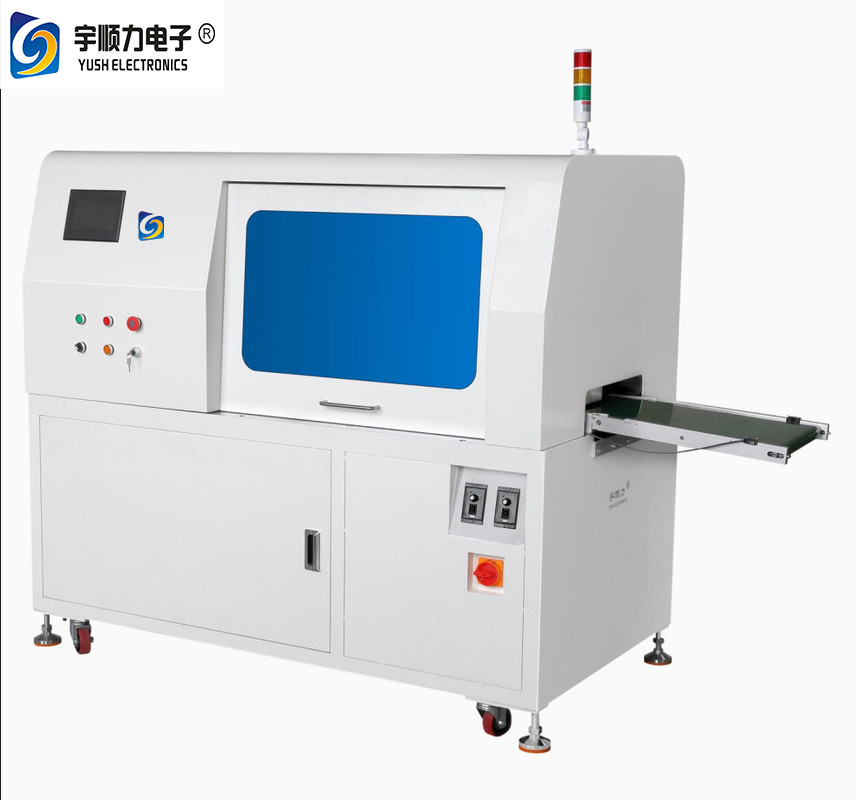

1. YSV-5A automatic double-direction splitting machine is a machine with two-way horizontal and vertical splitting plates. It solves the problem that the well-shaped V-groove PCB board needs to be divided into two sub-boards, and the operation is slow.
2. High degree of automation, before and after docking other equipment, truly unmanned, saving labor.
3. Touch-screen operation can quickly replace PCB products of different sizes. The back-end sub-boards are modularized. It takes only 10 minutes to replace the products, and the PLC data storage can reach 100 groups.
4. The device can be set as a single-direction sub-board, and the horizontal and vertical sub-boards can be completed in the touch screen of the device, and one machine is multi-purpose and more intelligent.
5. Vacuum cleaner (optional)
Features:
1. The machine can be fully automatic two-way board.
2. The machine can also be divided horizontally or vertically.
3. The machine can achieve rapid replacement of the product, fast modular conversion.
4. It can dock the upper and lower board machines to realize fully automated production and save labor.
5. Simple operation, training can be used to master.
6. Unique new tool design, durability increased by 1.5 times.
Specification parameters:
| Item | YSV-5A |
| Name | Automatic double direction pcb depaneling machine |
| DimensionsL/W/H | 1250(1560)mm×800mm×1295mm |
| Blade material | Imported high quality high speed steel |
| Blades brand | yushunli |
| Board width | Single boards 12mm(Whole board300mm) |
| Drive system motor | Stepper motor / servo (optional) |
| Cutting speed | 300-500mm/s |
| Cutting boards types | Two-way V-CUT well type products, single direction V-CUT products |
| V-CUTthickness | One-third thickness |
| Working pressure |
0.5-0.8MPA |
| Operating Voltage | 220V/110V Optional |
| Equipment power | 300KW(Except Vacuum cleaner ) |
| Machine weight | 300KG |
