Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YSL400
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD2600
Packaging Details: plywooden case
Delivery Time: 5-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50sets/month
Weight: |
270Kg |
Repeatability Precision: |
±0.01mm |
Power Supply: |
220V 50HZ |
Dimensions: |
850×670×1550mm |
Platform Size: |
320×400mm |
Weight: |
270Kg |
Repeatability Precision: |
±0.01mm |
Power Supply: |
220V 50HZ |
Dimensions: |
850×670×1550mm |
Platform Size: |
320×400mm |

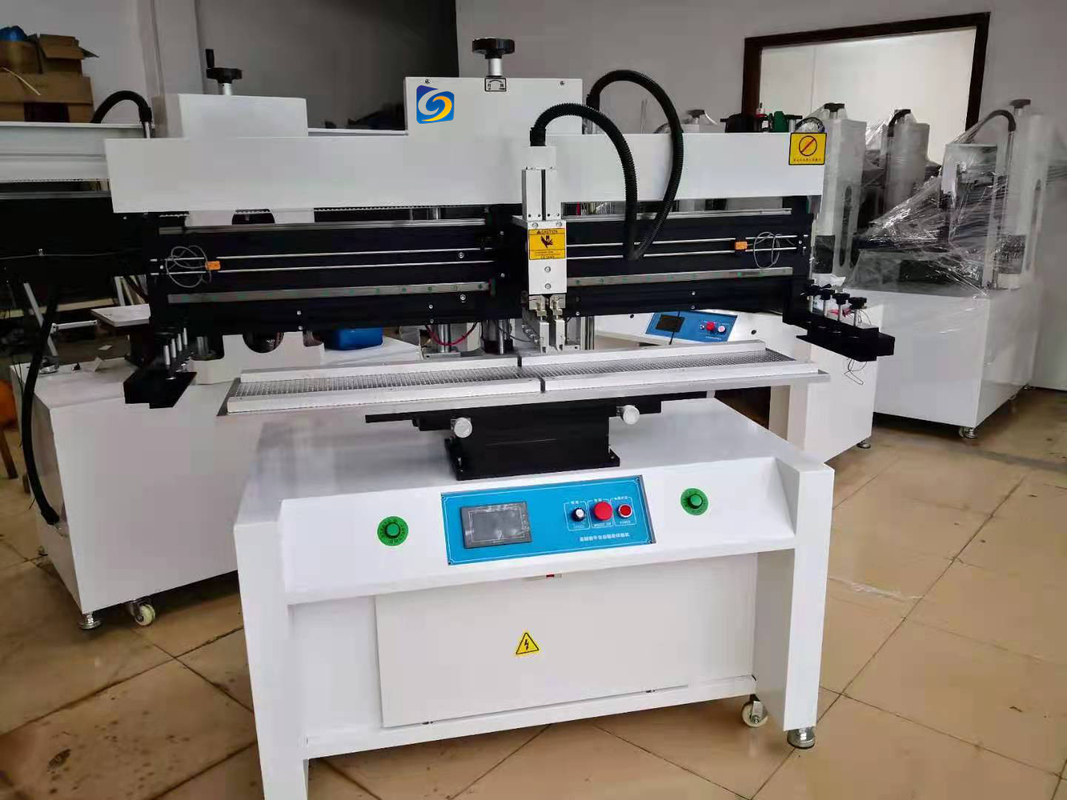

270KG 320*400mm Stencil PCB Semi-auto solder paste printer YS-SP400
Semi-auto solder paste printer YS-SP400
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
