Product Details
Place of Origin: China
Brand Name: YuSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YS-GPS440
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD1000-29000
Packaging Details: Plywooden case
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets/ month
Machine Size: |
1770x1776x1565 (mm) |
PCB Size: |
400mmX400mm |
Open Height: |
2060 (mm) |
Transport Width: |
50-400(mm) |
Effective Solderable Range: |
350mmX350mm(Customizable) |
Machine Size: |
1770x1776x1565 (mm) |
PCB Size: |
400mmX400mm |
Open Height: |
2060 (mm) |
Transport Width: |
50-400(mm) |
Effective Solderable Range: |
350mmX350mm(Customizable) |

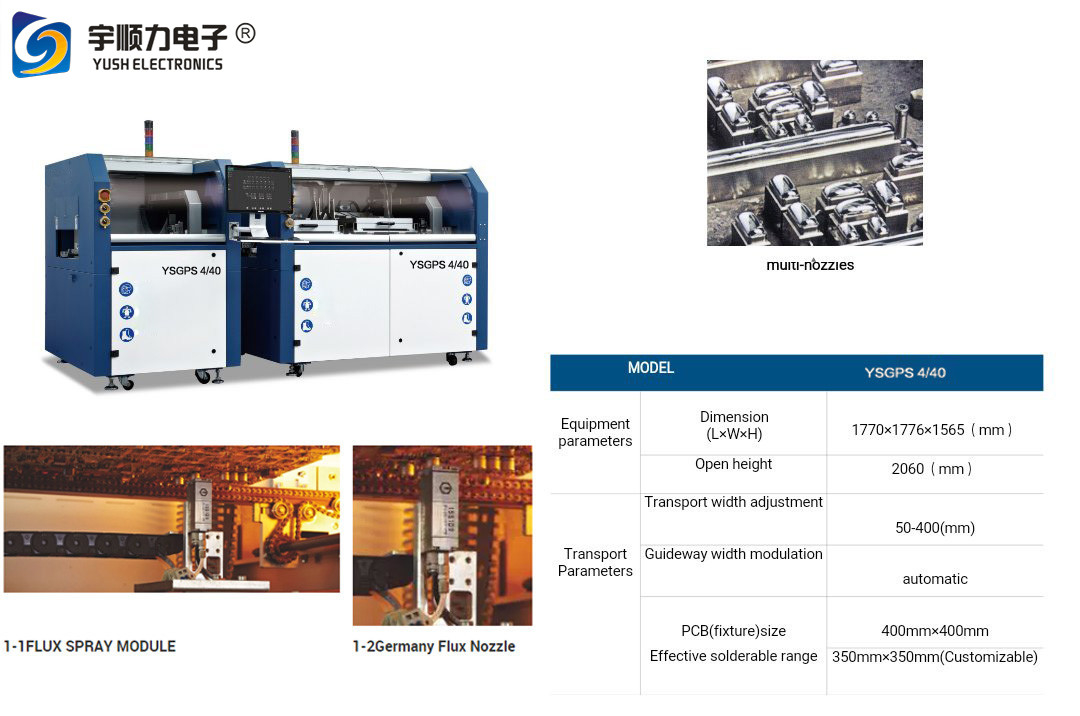

YS-GPS440 Selective Soldering Machine
1770x1776x1565 (mm) 400mmX400mm YS-GPS440 Selective Soldering Machine
Technical Parameters:
| Machine Size | 1770x1776x1565 (mm) |
| PCB size | 400mmX400mm |
| Open height | 2060 (mm) |
| Transport width | 50-400(mm) |
| Guideway width | automatic |
| Effective solderable range | 350mmX350mm(Customizable) |
FLUX SPRAY MODULE
Introduction:
The spray head which is imported from Germany offers an absolutely precise andwell defined flux deposition on even the smallest areas. The flux is targeted to beapplied only to the solder joint,whereby the wettable area can be as small as 3mm.with the effect that ionic contamination is minimized and flux consumption isduced.
Features:
Saving 90%flux compared to traditional mode.The wettable area can be as small as 3mm, minimize the effect of ionic contamination, meanwhile boards cleaning free.Two axis servo motor control, high positioning accuracy.
Minimum ionic contamination.
| Specifications: | |
| Flux module x axis distance (max.) | 510mm |
| Flux module y axis distance (max.) | 450mm |
| Max. nozzle speed | 7m/min |
| Flux content | 2 L |
| Flux type | RO, RE and OR and with the effective standard of L0, L1, M0, according to IEC 61190-1-1 |
| Flux effective level | L0, L1, M0 |
| Nozzle | 130 μm, alternative diameter |
| Spray pressure | 0.5~1.0 bar |
| Spray width | 2~8 mm (with spray nozzle 130 μm) |
| Spray speed | 20 mm/s |
| Positioning speed | 400 mm/s |
| Positioning accuracy | ±0.2 mm |
| Flux system | 2-axis With Servo Drive |
