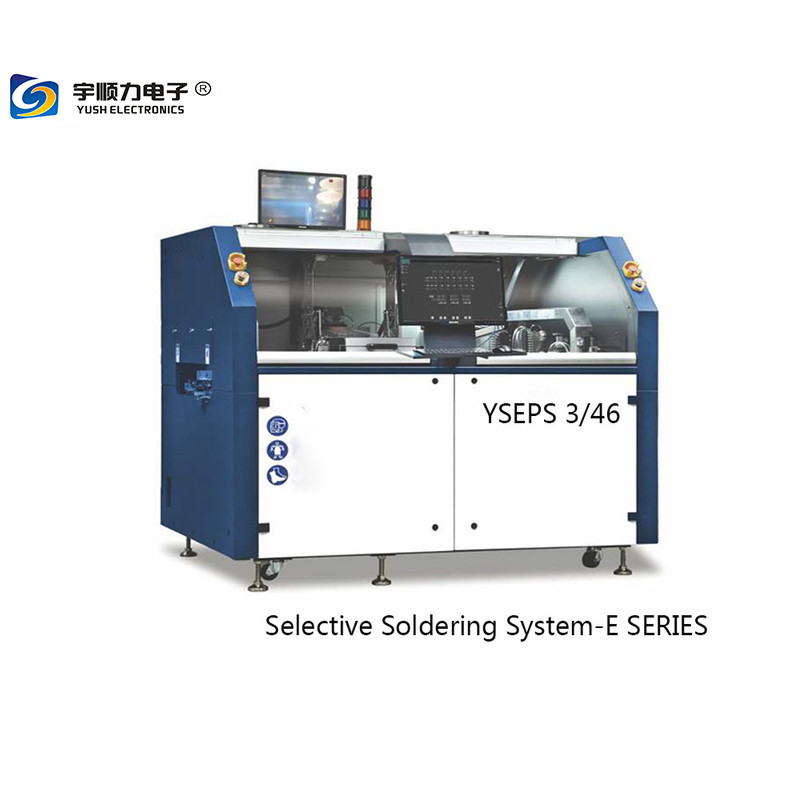

High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm

China High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm supplier
High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm supplier High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm supplier

Large Image :  High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm

Product Details:

Place of Origin: China
Brand Name: YuSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YS-CPS435

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD1000-29000
Packaging Details: Plywooden case
Delivery Time: 3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets/ month
Contact Now
Detailed Product Description
Machine Size: 2700x1735x1415 (mm) PCB Size: L400*W350 (mm)
Conveyor Height: 900±20(mm) The Amount Of Tin Dross: 0.5KG/pot/week X4
Nitrogen Consumption: 1.5-2m³/h/potx1

YS-CPS435 Selective Soldering Machine



2700x1735x1415 (mm) 0.5KG/pot/week x4 YS-CPS435 Selective Soldering Machine



Technical Parameters:



Machine Size 2700x1735x1415 (mm)
PCB size L400*W350 (mm)
Conveyor height 900±20(mm)
Solder pot electromagnetic pump tin solder pot
The amount of tin dross 0.5KG/pot/week x4
Nitrogen consumption 1.5-2m³/h/potx1
solder pot numbers single pot







FLUX SPRAY MODULE

Introduction:
The spray head which is imported from Germany offers an absolutely precise and
well defined flux deposition on even the smallest areas. The flux is targeted to be
applied only to the solder joint,whereby the wettable area can be as small as 3
mm.with the effect that ionic contamination is minimized and flux consumption is
duced.

Features:
Saving 90%flux compared to traditional mode.
The wettable area can be as small as 3mm, minimize the effect of ionic contamination, meanwhile boards cleaning free.
Two axis servo motor control, high positioning accuracy.
Minimum ionic contamination.

Specifications:
Flux module x axis distance (max.) 510mm
Flux module y axis distance (max.) 450mm
Max. nozzle speed 7m/min
Flux content 2 L
Flux type RO, RE and OR and with the effective standard of L0, L1, M0, according to IEC 61190-1-1
Flux effective level L0, L1, M0
Nozzle 130 μm, alternative diameter
Spray pressure 0.5~1.0 bar
Spray width 2~8 mm (with spray nozzle 130 μm)
Spray speed 20 mm/s
Positioning speed 400 mm/s
Positioning accuracy ±0.2 mm
Flux system 2-axis With Servo Drive





High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm





FLUX SPRAY MODULE

Introduction:
The spray head which is imported from Germany offers an absolutely precise and
well defined flux deposition on even the smallest areas. The flux is targeted to be
applied only to the solder joint,whereby the wettable area can be as small as 3
mm.with the effect that ionic contamination is minimized and flux consumption is
duced.

High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm

FLUX SPRAY MODULE

Introduction:
The spray head which is imported from Germany offers an absolutely precise and
well defined flux deposition on even the smallest areas. The flux is targeted to be
applied only to the solder joint,whereby the wettable area can be as small as 3
mm.with the effect that ionic contamination is minimized and flux consumption is
duced.

Features:
Saving 90%flux compared to traditional mode.
The wettable area can be as small as 3mm, minimize the effect of ionic contamination, meanwhile boards cleaning free.
Two axis servo motor control, high positioning accuracy.
Minimum ionic contamination.

High Speed Selective Weave Soldering Machine Conveyor Height 900±20mm

Features:
Saving 90%flux compared to traditional mode.
The wettable area can be as small as 3mm, minimize the effect of ionic contamination, meanwhile boards cleaning free.
Two axis servo motor control, high positioning accuracy.
Minimum ionic contamination.
