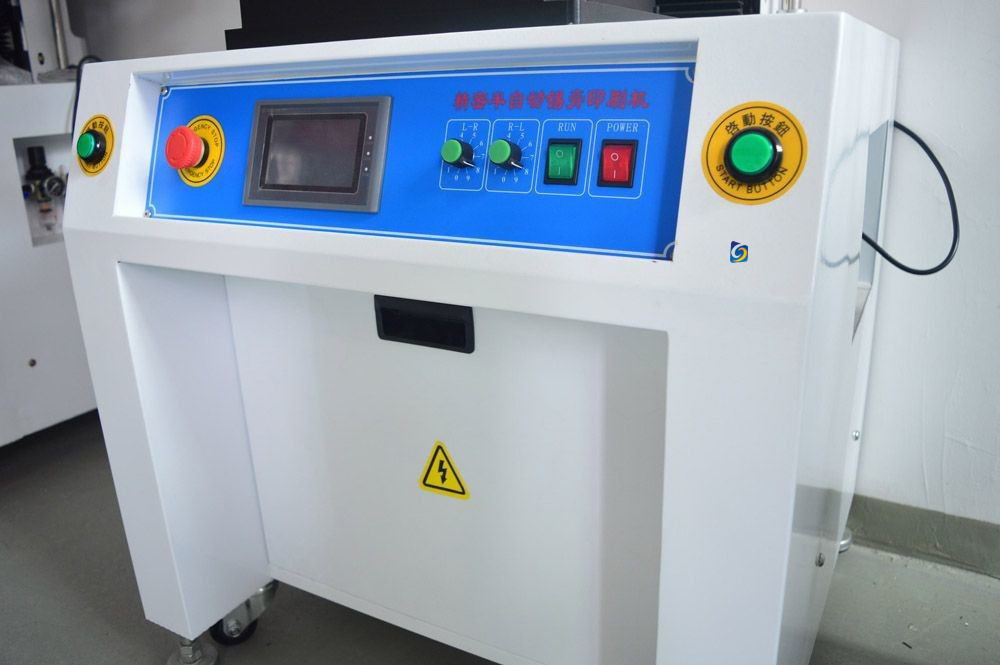

450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer

China 450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer supplier
450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer supplier 450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer supplier

Large Image :  450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer

Product Details:

Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YS-X9

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD3000
Packaging Details: Plywooden case
Delivery Time: 6-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 sets/ month
Contact Now
Detailed Product Description
Maximum board size (X x Y): 450mm X 350mm Minimum board size (Y x X): 50mm X 50mm
PCB thickness: 0.4mm~14mm Warpage: Max. PCB Diagonal Line 1%
Maximum board weight: 10kg Maximum bottom gap: 20mm
Transfer speed: 1500mm/s(MAX)

450mm x 350mm 10kg Semi Auto PCB printing machine solder paste screen printer SMT stencil printing machine



Technical Parameter

Item No X9
PCB Parameters
Maximum board size (X x Y) 450mm x 350mm
Minimum board size (Y x X) 50mm x 50mm
PCB thickness 0.4mm~14mm
Warpage Max. PCB Diagonal line 1%
Maximum board weight 10kg
Board margin gap Configuration to 3mm
Maximum bottom gap 20mm
Transfer speed 1500mm/s(MAX)
Transfer height from the ground 980 ±40mm
Transfer orbit direction Left-Right , Right-Left, Left-Left, Right-Right (Program Settings)
Transfer mode One stage orbit
PCB clamping method

Programmable flexible side pressure + Adaptive PCB board

thickness + Bottom integral suction cavity vacuum(optional:

1,Multipoint partial vacuum at the bottom;2,Edge locking and

substrate clamping)

Support method

Magnetic thimble, equal high block, vacuum suction cavity, special

workpiece fixture.

Printing parameters
Printing head Suspended intelligent closed loop printing head (Linear motor)
Template frame size 370mm x 470mm~737 mm x 737 mm
Maximum printing area 450mm x 350mm
Squeegee type

Steel squeegee / Glue squeegee (angle 45°/55°/60°matching the

printing process)

Squeegee length 220mm~500mm
Squeegee height 65 ±1mm
Squeegee thickness 0.25mm Diamond-like carbon coating
Printing mode Single or double squeegee printing
Demoulding length 0.02 mm - 12 mm
Printing speed 0~ 200 mm/S
Printing pressure 0.5- 10Kg
Printing stroke ±200mm From the center
Image parameters
Field of View 6.4mm x 4.8mm
Platform adjustment range X,Y: ±7.0MM, θ:±2.0°
Benchmark point type

Standard shape benchmark point (SMEMA standard), solder pad /

openings

Camera system

Independent camera, upwards / downwards imaging vision system,

geometric matching location

Performance parameter
Repetition precision of image calibration ±10.0 micron @6 σ,Cp≥2.0
Repetition precision of printing ±20.0 micron @6 σ,Cp≥2.0
Cycle time < 7s
Product Changeover < 5mins
Equipment
Power requirements AC220V ±10%,50/60HZ,15A
Compressed air requirements 4~6Kg/cm2, 10.0 Diameter of the tube
Operating system Windows XP
External dimension L1140x W1410x H1480mm
Machine weight Around1000Kg
Temperature and humidity control module (optional)
Environment temperature 23±3℃
Relative humidity 45~70%RH4





450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer

SPrinter 3M Solder Paste Printer, since it’s simple and reliable structure, accurate positioning and easy to adjust, thereby it can quickly and automatically adjust the pin height for the different thickness of PCB.
The spray nozzle makes the cleaning liquid evenly sprinkled on the wiping paper. The arc-shaped rubber wiper is soft, antiwear and antirust, cleaning thoroughly with the bidirectional strong vacuum.
It’s easy to adjust the width of the wiping paper from 250 to 450mm, and can be used for dry cleaning, wet wiping, wet cleaning, reciprocating cleaning or other purposes.

450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer

Advanced upper/lower coaxial optical alignment system with omni-

directional light compensation, clear resolution, wide range of process

application window, high precision servo motor and the combination of

the most advanced ball screw and linear slide rail for more accurate

recognizing and capturing the images. The outstanding stability can

ensure the coincident accuracy of PCB and stencil.



450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer

With the squeegee pressure feedback system, we can intelligently adjust

the depth of the squeegee and ensure the pressure value invariably in

printing process, thereby to achieve the best process control for the

perfect printing of high-density and fine pitch devices.

The pressure data measured in real time, it can be used for the statistic

and monitoring of process control.

450mm X 350mm 10kg Semi Auto PCB Printing Machine Solder Paste Screen Printer

Siphonic and programmable atomizing nozzle and cleaning fluid can

be any combination of dry, wet and vacuum cleaning methods for

cleaning thoroughly. The soft antiwear rubber squeegee is easy to

disassemble and cleaning thoroughly.

Contact Details
YUSH Electronic Technology Co.,Ltd

Contact Person: Peter Chen

Tel: +8613580833864

Send your inquiry directly to us (0 / 3000)
