Home > products > SMT Pick And Place Machine > Smart SMT Pick And Place Equipment 50/60Hz 72000CPH Capability

Smart SMT Pick And Place Equipment 50/60Hz 72000CPH Capability

Product Details

Place of Origin: China

Brand Name: YUSH

Certification: CE

Model Number: YS-24

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Business negotiation

Packaging Details: Plywood package

Delivery Time: 15 days to 20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 50 sets per year

Get Best Price
High Light:

pick and place equipment

,

smt pick and place equipment

Brand Name:
YAMAHA
Applicable Components:
0201,0402,0603,0805,1206,QPF,SOP,BGA
Application Range:
SMD,Chips,etc.
Capability:
72,000CPH
Brand Name:
YAMAHA
Applicable Components:
0201,0402,0603,0805,1206,QPF,SOP,BGA
Application Range:
SMD,Chips,etc.
Capability:
72,000CPH
Smart SMT Pick And Place Equipment 50/60Hz 72000CPH Capability

72,000CPH Capability Smart Placement Second- hand YUSH YS24 Pick and Place Machine



Below is the operation video of Pick and Place Machine on YuTube



https://youtu.be/IZX3HnE9fUg



Machine features:



Place of Origin:Japan

Brand Name:YUSH

Model Number:YUSH

Name:Pick and Place Machine

Applicable Components:0402,0603,0805,1206,QPF,SOP,BGA

Usage:LED,SMD,Chip,SMT

Product name:Smt Pick and Place Machine Yamaha

Application:Led light

Warranty:1 Year

Power Supply:AC220V 50Hz / AC110V 60Hz

Weight:Approx.2210KG

Dimensions(mm):1850*1680*1530mm

Component available:Minimum 01005-38*38*8.5mm (48*48 Optio



Product parameter:



Model YS24
Applicable PCB L700×W460mm to L50×W50mm
Mounting Capability 72,000CPH (0.05 sec./CHIP: Optimum conditions established by
Yamaha Motor)
Mounting Accuracy Absolute accuracy (μ+3σ) :+/-0.05mm/CHIP
Repeatability (3σ) :+/-0.03mm/CHIP
Applicable Components 0402 (Metric bases) to 32mm components (Height 6.5mm or less)
Component Types 120 type (Max, 8mm tape reel conversion)
Power Supply 3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air Supply Source 0.45MPa
External Dimensions L1,254 x W1,440 x H1,450mm (Excluding protrusions)
Weight 1,700kg

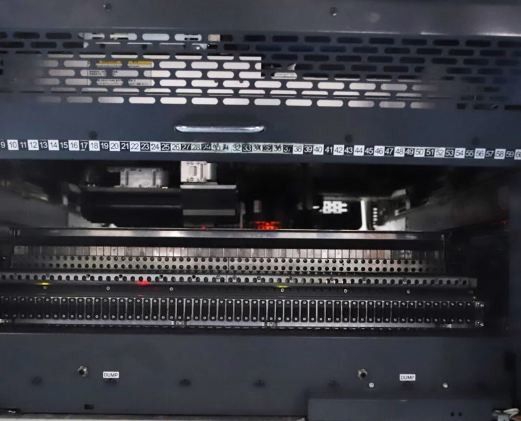

Demo for sale machine:



Smart SMT Pick And Place Equipment 50/60Hz 72000CPH Capability 0



Packing method:
1) Standard box package for light and small item;
2) Strong wood package for heavy and large equipment;

Shipping way:
1) By air, for sample and small package, wordwide express like DHL, UPS, FedFX, EMS...
2) By sea, for large package and quantity;
3) By car or other ways as customer requested;



Smart SMT Pick And Place Equipment 50/60Hz 72000CPH Capability 1
