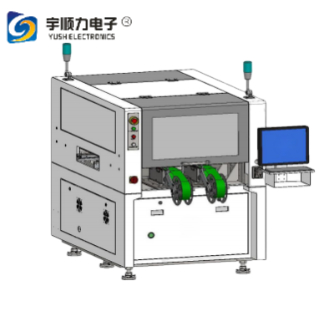

High Efficiency 1KW Automatic Labeling Machine For SMT Production Line

Name: High Efficiency 1KW Automatic Labeling Machine For SMT Production Line
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YSL-T2
Price: 9,500.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu

Brand Name: Yushunli

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: YSL-T2

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 7000~12000

Packaging Details: Plywooden case

Delivery Time: 3 days to 7days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 300 sets/ month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                SMT Production Line Labeling Machine, SMT Production Line Automatic Labeling Machine, 1KW Automatic Labeling Machine


Dimension:	About 1096 × 1130 × 1426mm	Weight:	About 800Kg
Power Supply:	AC220V ± 10% 50Hz	Power:	1.0KW
Gas Source:	0.4-0.6MPa	Air Pressure:	Less Than 1L/min (air Consumption Of Each Vacuum Generator 46L/min)

Dimension:	About 1096 × 1130 × 1426mm
Weight:	About 800Kg
Power Supply:	AC220V ± 10% 50Hz
Power:	1.0KW
Gas Source:	0.4-0.6MPa
Air Pressure:	Less Than 1L/min (air Consumption Of Each Vacuum Generator 46L/min)

High Efficiency 1KW Automatic Labeling Machine For SMT Production Line

High Efficiency /High Qaulity Fully Automatic Labeling Machine For SMT Production Line

Parameter

	Items	Parameter
Complete machine	Dimension	About 1096 × 1130 × 1426mm
	Weight	About 800Kg
	Power Supply	AC220V ± 10% 50Hz
	Power	1.0KW
	Gas source	0.4-0.6MPa
	Air Pressure	Less than 1L/min (air consumption of each vacuum generator 46L/min)
Mounting	Production	Max 2500pcs/h 或 1.2-2.5sec/pcs Note 1
	Product/vehicle size	L50 ×W50-L340 ×W280mm
	Product/vehicle thickness	1-6mm
	Material frame size	L * W: 2 x 2-100 x 40 mm, Thickness: 0.05-0.3 mm (Special thickness can be customised, diameter over 30mm needs to be customised.)
	Material Specification	1-10pcs/line (roll)
	Number of mounting heads	2 PCS
	Label Feeder Capacity	2pcs 105mm Smart Feeder (customizable)
	Entry direction	L-R ,R-L ,L-L ,R-R
	Transfer rate	Max 600mm/sec
	Transport Height	900 ±20mm
	Mounting Angle	0-360 °
	Mounting accuracy	±0.05mm(excluding material deviation)
	Position Accuracy	±0.025mm
	Repositioning Accuracy	±0.005mm
Others	Stripping method	Optical fiber detection + software control
	Suction test	Vacuum detection ,drop mark detection
	Product support mode	Magnetic thimble ,flexible side clamp
	Track widening	automatic adjustment
	Control Method	pc industrial computer
	Machine connection	SMEMA port
	Operating Environment	Windows
	Division_Purview	coded lock
	on-line mode	Reserved network interface
	Human Machine Interface	LCD
	Input Equipment	Keyboard ,mouse
	Alarm method	Three-color light, buzzer, software warning popover

Cellphone Application

High Efficiency 1KW Automatic Labeling Machine For SMT Production Line 0

Quality Assurance

High Efficiency 1KW Automatic Labeling Machine For SMT Production Line 1

After the equipment is installed, laser interferometer, quadratic element and other instruments are used for accuracy detection and correction, and then 72-hour aging test and actual production test are carried out. Only after all tests meet the requirements, the equipment can be deliveried.
