Intelligent Rotary Head Glue Dispensing Machine Needle Tubing 2.6 L Glue Bottle

Product Details

Place of Origin: China

Brand Name: YUSH

Certification: CE

Model Number: YS-551

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Business negotiation

Packaging Details: Plywood case

Delivery Time: 3 days to 7 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 sets per month

Get Best Price
High Light:

automatic glue dispensing machine

,

glue dispensing equipment

Movement Speed X&Y / Z (mm/sec):
0.1~200 / 150
Repeatability:
± 0.05 Mm
Program Recording Mode:
100 Groups, 4000 Points Per Group
Display Mode:
Teaching Box LCD (320 × 240)
Operating Mode:
Point-to-point/continuous Line Segment
Transmission Mode:
Timing Belt &precision Linear Guide
Motion Interpolation Function 3 Axis:
3D Stereo Space Is Available On Any Route
Edit Mode:
Teach Box / PC I/0: 8 Inputs / 8 Outputs
Movement Speed X&Y / Z (mm/sec):
0.1~200 / 150
Repeatability:
± 0.05 Mm
Program Recording Mode:
100 Groups, 4000 Points Per Group
Display Mode:
Teaching Box LCD (320 × 240)
Operating Mode:
Point-to-point/continuous Line Segment
Transmission Mode:
Timing Belt &precision Linear Guide
Motion Interpolation Function 3 Axis:
3D Stereo Space Is Available On Any Route
Edit Mode:
Teach Box / PC I/0: 8 Inputs / 8 Outputs
Intelligent Rotary Head Glue Dispensing Machine Needle Tubing 2.6 L Glue Bottle

Intelligent Rotary Head Glue dispenser Machine Needle Tubing 2.6 L Glue Bottle



Below is the link video of Glue dispenser Machine for YuTube



https://youtu.be/wIYD9gFkUzk

https://youtu.be/Dp9LiL7Rk-w

https://youtu.be/j5n5G-a5on0



Glue dispenser Mchine Features:



1.Three (four) axis linkage precise positioning and control of glue filling, realize spatial linear interpolation or two-axis arc can be light Loosen the setting of any path;

2.Can complete matrix copying of various paths, offset correction, calibration point setting, and between each machine
Program transfer and other functions;

3.With independent universal input and output;

4.Use brand slide rails and stepper motor drive.



Glue dispenser Mchine Parameters:


1.Maximum load Y-Axis/ Z-Axis: 10kg / 5kg
2.Movement speed X&Y / Z (mm/sec): 0.1~200 / 150
3.Repeatability : ± 0.05 mm
4.Program recording mode : 100 groups, 4000 points per group
5.Display mode: Teaching box LCD (320 × 240)
6.Motor system: Stepper motor
7.Operating mode: Point-to-point/continuous line segment
8.Transmission mode: Timing belt &precision linear guide
9.Motion interpolation function 3 axis (3D stereo space is available on any route)
10.Edit mode:Teach box / PC I/0: 8 Inputs / 8 Outputs
11.External control interface: RS232
12.Input power AC110/220V (internal switching) 450W
13.Machine size: 637*560*820MM Weight: 85KG

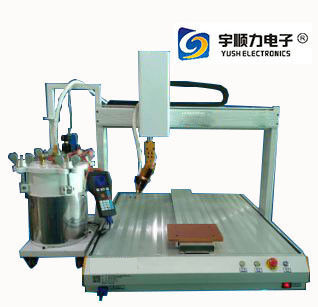

Demo exhibitions:

Intelligent Rotary Head Glue Dispensing Machine Needle Tubing 2.6 L Glue Bottle 0
