Full Automatic Double Platform Melt Adhesive Dispensing Robot Dispenserzhh

Name: Full Automatic Double Platform Melt Adhesive Dispensing Robot Dispenserzhh
Brand: YUSH Electronic Technology Co.,Ltd
SKU: TZ-PUR5331 TZ-GW5331S
Price: 9,500.00 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: TZ-PUR5331 TZ-GW5331S

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 7000~12000

Packaging Details: Plywooden case

Delivery Time: 3 days to 7days

Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .

Supply Ability: 100 sets/ month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                Melt Adhesive Dispensing Robot, Adhesive Dispensing Robot, Double Platform Dispensing Robot


Name:	Hot Melt Adhesive Dispensing Machine	Programmatically:	Importteachingprogrammingorgraphics
Importteachingprogrammingorgraphics:	PointJine,arc,circle,curve,multiplelines,spiral,ellipse	Dispensing Head:	PUR Dispensing Head /PUH Dispensing Head
Glue Barrel:	30mlor50ml	Minimum Discharge:	0.01ml
Theglue Frequency:	5 Times/SEC.	Axialdynamic SpeedX/Y/Z:	0-600mm/sec
Resolving Power:	0.01mm/Axis

Name:	Hot Melt Adhesive Dispensing Machine
Programmatically:	Importteachingprogrammingorgraphics
Importteachingprogrammingorgraphics:	PointJine,arc,circle,curve,multiplelines,spiral,ellipse
Dispensing Head:	PUR Dispensing Head /PUH Dispensing Head
Glue Barrel:	30mlor50ml
Minimum Discharge:	0.01ml
Theglue Frequency:	5 Times/SEC.
Axialdynamic SpeedX/Y/Z:	0-600mm/sec
Resolving Power:	0.01mm/Axis

Full Automatic Double Platform Melt Adhesive Dispensing Robot Dispenserzhh

Full Automatic /High Quality Double Platform Melt Adhesive Dispensing Robot Dispenserzhh

Specification Sheets

Name

Hot melt adhesive dispensing machine

Trip(mm)

500/300/300/100

300/300/100

programmatically

Importteachingprogrammingorgraphics

Canmove thegraph track

PointJine,arc,circle,curve,multiplelines,spiral,ellipse

Dispensing head

PUR dispensing head /PUH dispensing head

Glue barrel

30mlor50ml

Minimum discharge

0.01ml

Theglue frequency

5 times/SEC.

No truncation

Y/Xaxleload

10kg

Zaxleload

5kg

Axialdynamic speedX/Y/Z

0-600mm/sec

Resolving power

0.01mm/Axis

Repeatability

positioning accuracy(mm

Screwdrive

0.01-0.02

)

Synchronousbeltdrive

0.02-0.04

Programrecordmode

Atleast100,5000 points each

Displaymode

LCD Teaching box

Motorsystem

Japan precision micro stepping motor

Drivemode

Guide

Taiwan uppersilver linear guide rail

Wirerod

Taiwan silver bar

Italy ItalyLarteysynchronousbelt

XYZ axis synchronous belt for standard configuration,Z axis screw rod is optional,XYZ axis screw rod for customization

Motionfilling function

3 axis(3 Three dimensional space,any route can)

Inputpower

Full voltageAC110V-220V

External control interface

RS232

Motor control shaftnumber

4 axis

3 axis

Axis range(mm)

Xaxis

500

300

Yaxis

300

Yaxis

300

Zaxis

100

Outline size(mm)

730/589/630

530/589/632

Body weight(kg)

68KG

45KG

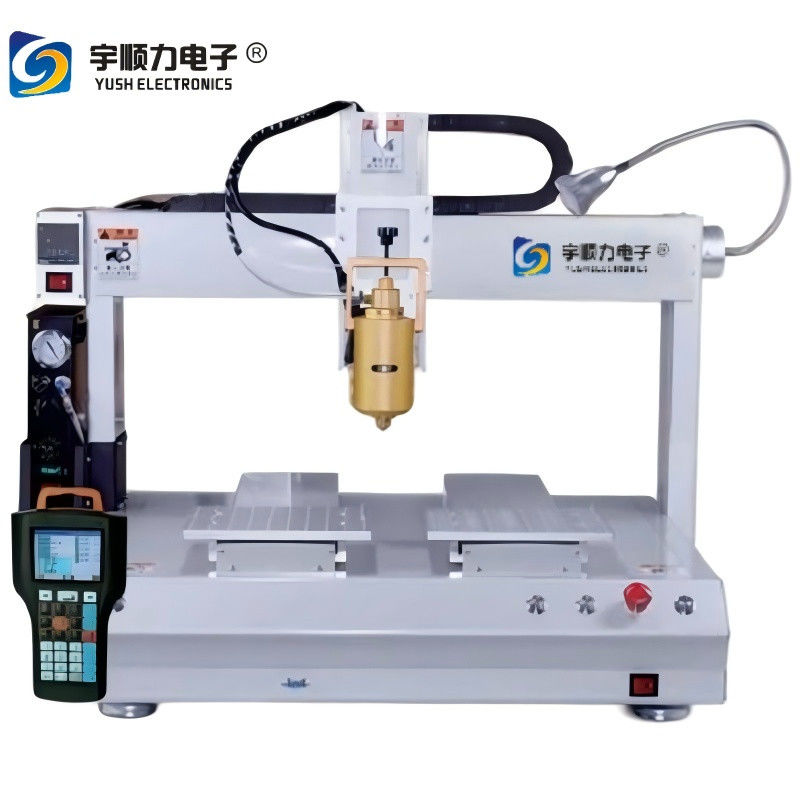

Full Automatic Double Platform Melt Adhesive Dispensing Robot Dispenserzhh 0

Full Automatic Double Platform Melt Adhesive Dispensing Robot Dispenserzhh 1

Distinguishing Feature

It runs alternately with a double platform,saving the time for the product to be taken and put.
It is independent of the mold.It is an aluminum profile casting structure with beautifulappearance.
The temperature is uniform,and the temperature deviation is±1 ℃ .
Its glue speed and glue amount can be set separately.
It can choose a variety of capacity hot melt point dispensing head.
The glue is smooth,the glue is broken,simply and the silk is not drawn.

Main Configuration

HIWIN lead rail
Shinano Kemshi
Italy Lartey belt
Taiwan Meanwell power
OMRON relay
ONPOW Metal switch
It has a customized hot melting point
dispensing head.

Yudian thermostat
