Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE
Model Number: YS-T48VB
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 4950 piece
Packaging Details: wooden case
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 100 piece per mounth
Dimension: |
L 960mm X W 655mm X H 285mm |
Max PCB Size: |
355mmx355mm |
X Y Z Travel: |
420*460*15mm |
Mounting Speed: |
3000 Cph Vision On,5000 Cph Vision Off |
Net Weight: |
67Kg |
Min Electronic Components Size: |
0402 |
Placement Number: |
2 |
Feeders: |
58 Pcs :Left 29,Right 29 |
Precision: |
±0.025mm |
Dimension: |
L 960mm X W 655mm X H 285mm |
Max PCB Size: |
355mmx355mm |
X Y Z Travel: |
420*460*15mm |
Mounting Speed: |
3000 Cph Vision On,5000 Cph Vision Off |
Net Weight: |
67Kg |
Min Electronic Components Size: |
0402 |
Placement Number: |
2 |
Feeders: |
58 Pcs :Left 29,Right 29 |
Precision: |
±0.025mm |

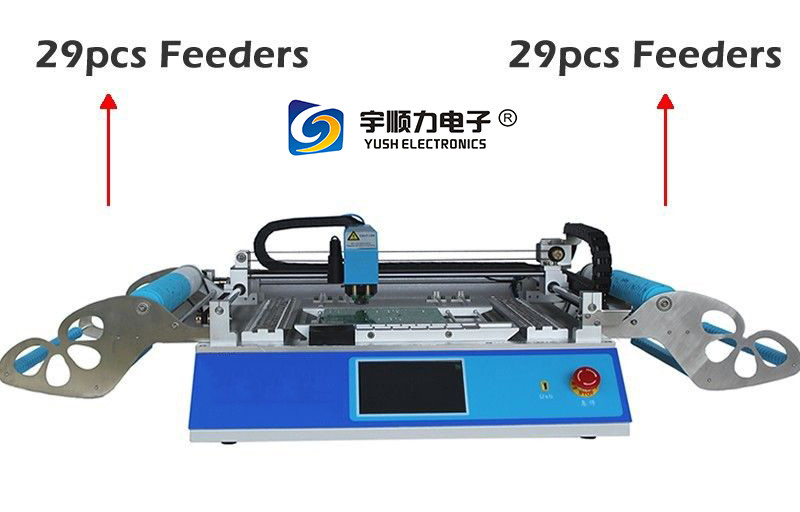

Desktop 58pcs Feeders YS-T48VB With 2 Vision Camera
Description:
1) Pick and Place Machine:YS-T48VB: 1
2) Juki nozzle: Totally 4pcs (503, 504, 505, 506 size)
3) 8G USB flash 1
4) Power Cord: 1
5) Pull needle: 2
6) Coil for pull pin:1
7) Camera positioning adjust black board: 1
8) Hex wrench: 6
9) Tweezers: 1
10) Brush: 1
11) English user manual: 1
Main parameters
| Model | YS-T48VB |
| PCB area | 10mm*10mm - 355mm*355mm |
| X Y axis Travel | 420*460mm |
| Z axis moving range | 15mm |
| Placement heads | 2pcs |
| Feeders |
Left 29pcs + right 29pcs 8mm=44pcs, 12mm=8pcs, 16mm=4pcs, 24mm=2pcs, Front IC stack=14pcs, user-defined IC tray |
| Vision system | Dual cameras (up / down cameras) |
| Drive | Closed-loop control stepper servo drive system, make sure never lose step |
| Z axis self-return detection | Yes, prevent nozzles breaking |
| Pull pin self-return | Yes |
| Leakage of material detection method | Vacuum detection, vision detection |
| Touch screen | 7”industry touch screen |
| Main board | Independent research industry main board |
| System | Embedded Linux system |
| Mounting speed | 5000cph (vision off); 3000cph (vision on) |
| Mounting precision | ±0.025mm |
| Components | 0402-5050,SOP,QFN (tape width: 8MM,12MM,16MM,24MM) |
| Machine dimension | L960mm* W705mm* H335mm |
| Vacuum pump | -92KPA (2pcs,build-in, mute type) |
| External air source | No need (machine build-in mute vacuum pump 2pcs) |
| External PC | No need (All-in-one machine, very convenient ) |
| Voltage | 220V (110V), 50Hz 60hz |
| Net weight | 68kg |
| Gross weight | 84kg / 118*81*53cm |
