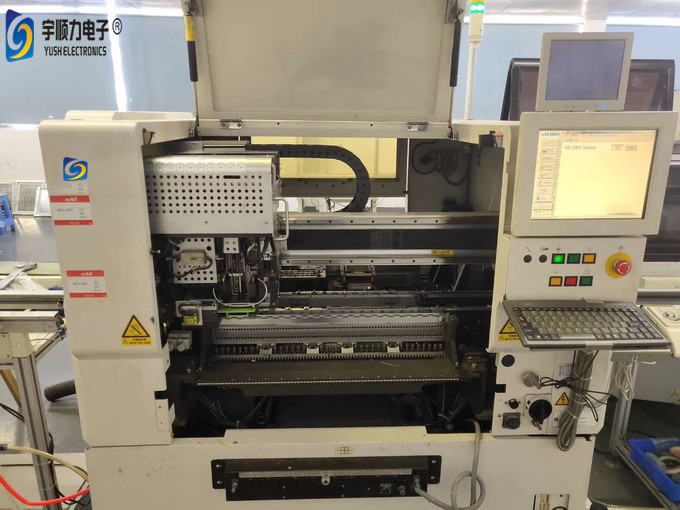

Accuracy ±0.04mm Automatic Pick And Place Machine Fast Speed 23300CPH

Name: Accuracy ±0.04mm Automatic Pick And Place Machine Fast Speed 23300CPH
Brand: YUSH Electronic Technology Co.,Ltd
SKU: YS- 2060M
Price: 88,500.00 USD
Availability: InStock

Product Details

Place of Origin: Japan

Brand Name: YUSH

Certification: CE

Model Number: YS- 2060M

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 78000-99000 piece

Packaging Details: wooden case and vacuum packaging

Delivery Time: 30 work days

Payment Terms: T/T

Supply Ability: 30 piece per mounth

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                pick and place soldering machine, smt pick and place equipment


Standard PCB Size:	330mmx250mm	Custom PCB Size:	510mmx360mm
The Electronic Components Height:	Max 25mm	The Min Electronic Components Size:	0402
Speed:	23300CPH	Accuracy:	±0.04mm
Dimension:	1,500×1,810×1,440mm	Weight:	1450Kg

Standard PCB Size:	330mmx250mm
Custom PCB Size:	510mmx360mm
The Electronic Components Height:	Max 25mm
The Min Electronic Components Size:	0402
Speed:	23300CPH
Accuracy:	±0.04mm
Dimension:	1,500×1,810×1,440mm
Weight:	1450Kg

Accuracy ±0.04mm Automatic Pick And Place Machine Fast Speed 23300CPH

Automatic Juki Chip Mounter RS-1 fast smart function

Product instructions:

Fast Smat Modular Mounter YS-1

As a Chip Mounter, as a Flexible Mounter, as a Balancer. Any item can be produced for smart production.

The new mounter will change the conventional common sense of the ever innovative.

Accuracy ±0.04mm Automatic Pick And Place Machine Fast Speed 23300CPH 0

1 For questions about the E-board, please contact your salesperson.
*2 Use MNVC (optional)
*3 When the image recognition resolution camera and MNVC (both optional) are made.
*4 Actual ergonomics: The mounting speed of the IC component is a conversion value when 36 QFPs (100 pins or more) or BGAs (256 balls or more) are mounted on the M-size substrate. (CPH = average number of mounting components per hour)
*5 The conversion value when using the MNVC (optional) and the full nozzle at the same time.
*6 Up to 110 varieties can be used with multi-layer pallet changers.

Chip components: 23,300 CPH (laser identification / optimal condition) (0.155 sec / chip) 18,300 CPH (laser identification / IPC9850)
IC component: 4,600 CPH (image recognition / when using MNVC option)
Laser head × 1 (6 nozzles)
0402 (Inch 01005) chip ~ 33.5mm square component
Image recognition (using MNVC options: reflective / transmissive recognition, ball recognition)
