High Accuracy Solder Paste Screen Printing Machine With Touch Screen

China High Accuracy Solder Paste Screen Printing Machine With Touch Screen supplier
High Accuracy Solder Paste Screen Printing Machine With Touch Screen supplier High Accuracy Solder Paste Screen Printing Machine With Touch Screen supplier High Accuracy Solder Paste Screen Printing Machine With Touch Screen supplier High Accuracy Solder Paste Screen Printing Machine With Touch Screen supplier High Accuracy Solder Paste Screen Printing Machine With Touch Screen supplier High Accuracy Solder Paste Screen Printing Machine With Touch Screen supplier

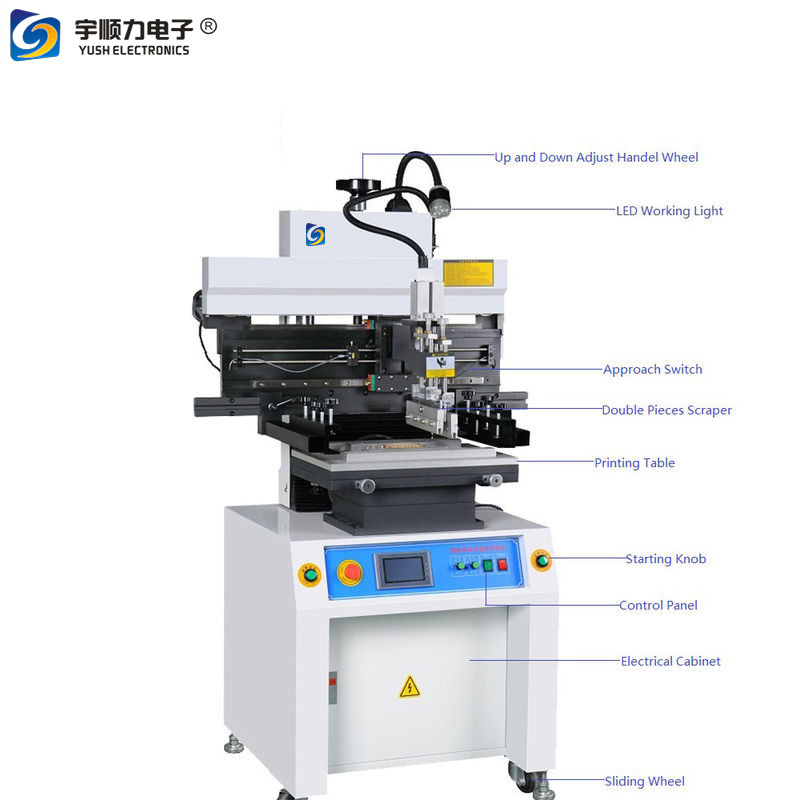

Large Image :  High Accuracy Solder Paste Screen Printing Machine With Touch Screen

Product Details:

Place of Origin: GuangDong
Brand Name: YUSHUNLI
Certification: CE Mark
Model Number: SP400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: business negotiation/ USD 3500-10000 piece
Packaging Details: plywooden package
Delivery Time: 3 days to 7 days
Payment Terms: T/T
Supply Ability: 30 Set/Sets per Month
Contact Now
Detailed Product Description
Precision: ±0.02mm Power Requirements: 1PAC220V 50/60HZ
Print Speed: 0-8000mm/min Dimension: 850×720×1650mm
PCB Thickness: 0.2-2.0mm PCB Size: 250×350mm
Weight: 300KG

High accuracy Hot sale Solder Paste Printer Machine /Screen printer / Stencil Printer



Semi-auto solder paste printer







Feature:

1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.

3.Block can be adjusted before and after the blade, to choose the right printing position.

4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.

5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.

6.Can be set to one-way and two-way, a variety of printing methods.

7.With the automatic counting function to facilitate the production of output statistics.

8.Adjustable blade angle, steel blade, rubber scraper are suitable.

9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.

10.Printing speed display, can be adjusted.

High Accuracy Solder Paste Screen Printing Machine With Touch Screen



Specifications:

Model SP400
Dimensions 850×720×1650mm
Platform size 320×400mm
PCB size 250×350mm
Template size 550×680mm
Printing speed 0-8000mm/min
PCB thickness 0.2-2.0mm
PCB fine tuning range Front/side±10mm
Power supply 1PAC220V 50/60HZ
Platform height 850±20mm
Repeating precision ±0.02mm
Printing Accuracy ±0.02mm
Positioning mode Outside/Reference hole
Weight Approx.300Kg
