Product Details
Place of Origin: JiamgSu
Brand Name: YUSHUNLI
Certification: CE Mark
Model Number: YS-N300
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: business negotiation
Packaging Details: wooden package
Delivery Time: 3 days to 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 set per month
Flux Pressure/capacity: |
3-5 Bar/5.2L |
Convey Speed: |
0-1800mm/min |
Warm-up Time Of Solder: |
About 120mins For Setting 250ºC |
Solder Temp. Control Method: |
PID&SSR |
Preheating Time: |
About 10-15mins For Setting 150ºC |
Solder Type: |
Lead-free / Sn-Pb |
Total/running Power: |
19KW/5-7KW |
Range Of Temp. Control: |
Room Temperature---300ºC |
Flux Pressure/capacity: |
3-5 Bar/5.2L |
Convey Speed: |
0-1800mm/min |
Warm-up Time Of Solder: |
About 120mins For Setting 250ºC |
Solder Temp. Control Method: |
PID&SSR |
Preheating Time: |
About 10-15mins For Setting 150ºC |
Solder Type: |
Lead-free / Sn-Pb |
Total/running Power: |
19KW/5-7KW |
Range Of Temp. Control: |
Room Temperature---300ºC |
Auto wave soldering equipment - Full process monitoring - Lead-free dual wave soldering machine ( Model:N300 )
Specification parameters:
| Model No. | YS-N300 |
| Number of heating zones | 3 |
| Length of heating zones | 1450mm |
| Body size | 2800(L)*1250(W)*1560(H) |
| Outside dimension | 3600(L)*1250(W)*1560(H) |
| Weight | 1000KG |
| Total/running power | 19KW/5-7KW |
| Air supply | 0.5MPa |
| Preheating method | IR(standard)/Hot air |
| Preheating power | 220V 6KW |
| Control method | PC +PLC/press keys/Touch screen |
| Range of temp. control | Room temperature---300ºC |
| Preheating time | About 10-15mins for setting 150ºC |
| Solder type | Lead-free / Sn-Pb |
| Solder pot capacity | 280KG |
| Solder pot temperature | 300ºC |
| Solder power | 380V 9KW |
| Solder temp. control method | PID&SSR |
| Wave crest drive power | 1KW 220V |
| Warm-up time of solder | About 120mins for setting 250ºC |
| PCB width | 50-300mm |
| Convey speed | 0-1800mm/min |
| Convey direction | L→R (R→L optional) |
| Convey angle | 4-7 º |
| Flux pressure/capacity | 3-5 bar/5.2L |
Feature introductions:
1. Efficient, energy-saving, lead-free, environment-friendly, safe and brand-new design, simple operation, convenient maintenance.
2. Automatic power system, frequency converter control, automatic board input system.
3. Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.
3. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.
4. pecial alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.
5. Tin stove adopts imported high frequency conversion motor independent control, stable performance.
6. Lead-free solder furnace with independent design, environmental protection and safety,
7. easy to clean.
8. Tin stove preheating furnace uses high-speed PID and 2 independent infrared heating (IR heating) control.
9. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.
10. With black box memory function, the machine can always store the production management records, improve work efficiency.
11. Automatic claw cleaning function ensure the cleanliness of claws.
12. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.
Demo exhibitions:

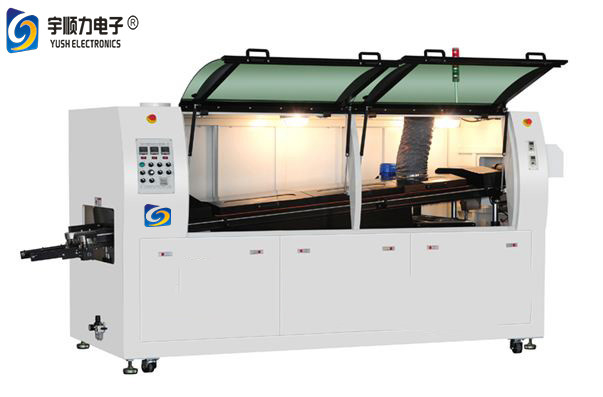

1. Lead-free wave machine full view.
2.computer control machine
3.Touch display operation:
4. Switch keys control:
