Product Details
Place of Origin: China
Brand Name: YUSH
Certification: CE Certificate
Model Number: YSVC-3S
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD1
Packaging Details: plywood case
Delivery Time: 5 work days
Payment Terms: T/T, Western Union
Supply Ability: 80 sets/month
Cutting Length: |
Unlimited |
Number Of Blades: |
6 Pieces |
Blades Shape: |
Circle Blades |
Material For The Blades: |
High Speed Steel |
Advantage: |
Adjusted The Distance Between Blades By Bottom |
Warranty: |
Free For One Year |
Cutting Length: |
Unlimited |
Number Of Blades: |
6 Pieces |
Blades Shape: |
Circle Blades |
Material For The Blades: |
High Speed Steel |
Advantage: |
Adjusted The Distance Between Blades By Bottom |
Warranty: |
Free For One Year |

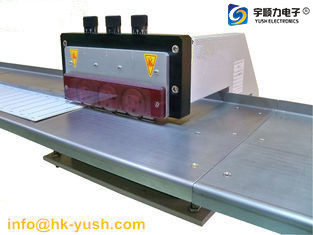

New Designed PCB Cutting Machine Cutting 1200mm Length LED Strip
Pcb Cutting Machine advantages :
1. Separates large numbers of PCBs without fatigue of the operator
2. Motor driven
3. The PCB is feed between the circular blades where it is seized, transported and separated
4. Different speeds can be selected
Specification for PCB Cutting Machine :
| Model | YSVC-3S |
| machine size | 40*40*34 cm |
| platform size | 150*27*20 cm |
| mininze speed | 0-400mm/s |
| cutting thickness | 1.0-3.5mm |
| Max depaneling length | unlimited |
| Machine weight | 45 kg |
| use |
PCB Cutting Machine Features :
1 . It is electric control,the straight knife type separator machines were designed to separate pre-scored panel boards carefully, without bending or tension stress . Even sensitive SMD-components like ceramic capacitors will not be damaged by the separate process . Due the special design of the knives also boards with high components placed closed to the edages can be separated safely .
2 . No vibration during the process to prevent damage to precise PCB
3 . Gap for insertion of the board can simply be adjusted by means of the adjusting knob , low friction design is applied
4 . Lower knife height adjustable , no thin plates are required after re-sharpening the cutting blade
5 . It is safty .the plastic shell can protect the operators .
6 . The blades can be regrind .
