Automatic PCB Cutting Machine V Cut PCB Separator Blades Moving

Product Details

Place of Origin: China

Brand Name: YUSH

Certification: CE

Model Number: YSV-1A

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: usd1

Packaging Details: plywood case

Delivery Time: 5 days after receive the payment

Payment Terms: T/T, Western Union

Supply Ability: 80 sets/month

Get Best Price
High Light:

v cut machine

,

v groove cutting machine

Material For The Blades:
High Speed Steel
Type:
Automatic Type
Warranty:
Free For One Year
Cutting Length:
460/600mm
Shipping Way:
EXW/FOB/EXW
Payment Term:
T/t
Material For The Blades:
High Speed Steel
Type:
Automatic Type
Warranty:
Free For One Year
Cutting Length:
460/600mm
Shipping Way:
EXW/FOB/EXW
Payment Term:
T/t

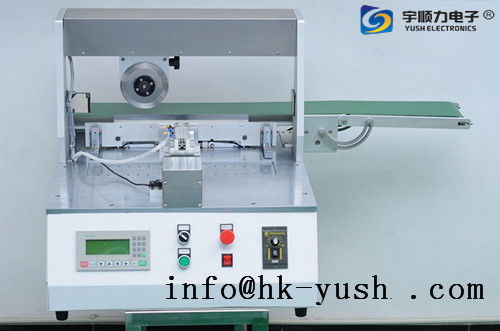

Automatic PCB Cutting Machine V Cut PCB Separator Blades Moving

Automatic PCB Cutting Machine V-cut PCB separator Blades Moving



specifications:



Model: YSV-1A
length (mm): 460 or 600
speed (mm/s): 100/200/300/500
thickness(mm): 0.6-3.5
power supply(v): 110/220
Size(mm): 770*510*450
weight: 55kg



Automatic PCB Cutting Machine V Cut PCB Separator Blades Moving 0



features:


1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out


Competitive Advantage:



1.YSV-1A original manufacturers

2. Day technical support services

3. Limit the handling of complaints, half an hour back to customers

4. Depanel Experts, the provision of professional PCB sub-programme
